Analog Devices MAX3181E Product Info

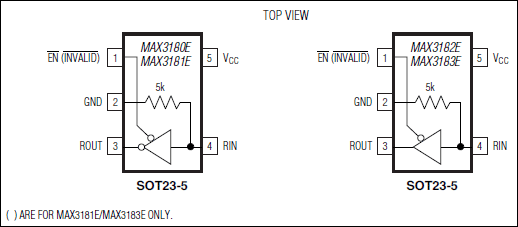

• Tiny SOT23-5 Package
• ESD-Protected RS-232 Input
  • ±15kV-Human Body Model
  • ±8kV-IEC 1000-4-2, Contact Discharge
  • ±15kV-IEC 1000-4-2, Air-Gap Discharge
• 0.5µA Supply Current
• 1.5Mbps Guaranteed Data Rate
• Meets EIA/TIA-232 and V.28/V.24 Specifications Down to V_CC = +3.0V
• Active-Low INVALID Output Indicates Valid RS-232 Signal at Receiver Input (MAX3181E/MAX3183E)
• Three-State TTL/CMOS Receiver Output (MAX3180E/MAX3182E)
• Noninverting RS-232 Output (MAX3182E/MAX3183E)

The MAX3180E-MAX3183E single RS-232 receivers in a SOT23-5 package are designed for space- and cost-constrained applications requiring minimal RS-232 communications. The receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, to ±8kV using IEC 1000-4-2 Contact Discharge, and to ±15kV per the Human Body Model, ensuring compliance with international standards.

The devices minimize power and heat dissipation by consuming only 0.5µA supply current from a +3.0V to +5.5V supply, and they guarantee true RS-232 performance up to a 1.5Mbps data rate. The MAX3180E/MAX3182E feature a three-state TTL/CMOS receiver output that is controlled by an active-low EN logic input. The MAX3181E/MAX3183E feature an active-low INVALID output that indicates valid RS-232 signals at the receiver input for applications requiring automatic system wake-up. The MAX3182E/MAX3183E have a noninverting output, while the MAX3180E/MAX3181E have a standard inverting output.

Applications

• Diagnostic Ports
• Digital Still Cameras
• Handheld Equipment
• Network Equipment
• Set-Top Boxes
• Telecommunications
