ADN4662

PRODUCTION

Single, 3 V, CMOS, LVDS Differential Line Receiver

Analog Devices ADN4662 Product Info

10 February 2026 5

Features

±15 kV ESD protection on input pins
400 Mbps (200 MHz) switching rates
Flow-through pinout simplifies PCB layout
2.5 ns maximum propagation delay
3.3 V power supply
High impedance outputs on power-down

Interoperable with existing 5 V LVDS drivers
Accepts small swing (310 mV typical) differential signal levels
Supports open, short, and terminated input fail-safe
0 V to −100 mV threshold region
Conforms to TIA/EIA-644 LVDS standard
Industrial operating temperature range: −40°C to +85°C

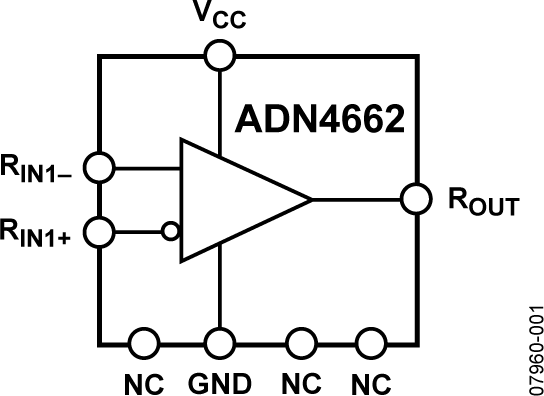

Part details & applications

The ADN4662 is a single, CMOS, low voltage differential signaling (LVDS) line receiver offering data rates of over 400 Mbps (200 MHz), and ultralow power consumption. It features a flow-through pinout for easy PCB layout and separation of input and output signals.

The device accepts low voltage (310 mV typical) differential input signals and converts them to a single-ended 3 V TTL/ CMOS logic level. The ADN4662 and its companion driver, the ADN4661, offer a new solution to high speed, point-to-point data transmission, and a low power alternative to emitter-coupled logic (ECL) or positive emitter-coupled logic (PECL).
Applications

Point-to-point data transmission

Multidrop buses

Clock distribution networks

Backplane receivers
