ADV7384

RECOMMENDED FOR NEW DESIGNS

Analog Devices ADV7384 Product Info

10 February 2026 5

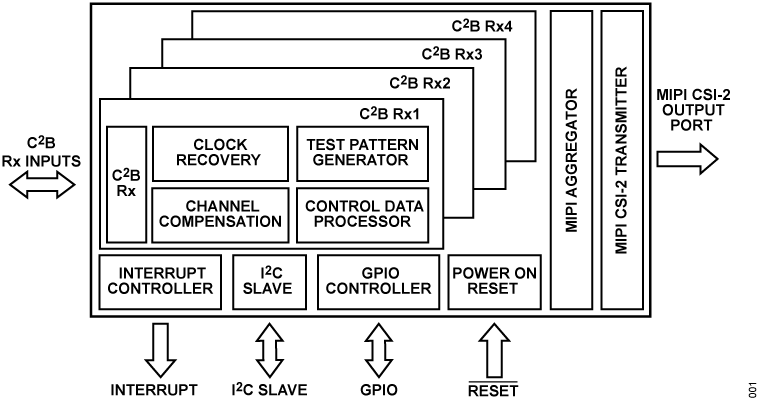

C²B quadruple (quad) receiver capable of interfacing to incoming video data and bidirectional control data on unshielded twisted pair (UTP) cables
MIPI CSI-2 transmitter:
- 1-lane, 2-lanes, or 4-lanes running at up to 1.5 Gbps per lane
- Up to four concurrent streams aggregated onto a single MIPI port using Virtual Channel Identifiers
8/10-bit YCbCr HD formats
Video resolutions up to 2 megapixels at 30 Hz or 1 megapixel at 60 Hz
Bidirectional control channel embedded in the C²B link for control and status data between the C²B receiver and the C²B transmitter
Remote configuration of the C²B transmitter and its connected devices
I²C broadcast mode to configure up to four camera systems simultaneously to reduce boot-up time
Four On-chip high-resolution, high-speed ADCs, and anti-aliasing filter blocks for video and control channel path
Eight bidirectional general-purpose inputs/outputs (GPIOs) with capability to broadcast from inputs and aggregate to outputs
Interrupt events reception from C²B transmitter or its connected devices, and aggregation to on-chip events to drive an interrupt output flag

Test pattern generator for ease of system testing
Protection from and diagnosis of high voltages encountered during short-to-battery fault condition
Cable equalizer capable of compensating for cable and connector insertion loss, equivalent to 30 m twisted pair cable
On-chip echo cancellation scheme to prevent visual impact caused by impedance mismatch between cables and connectors
Tested to automotive industry standards for electromagnetic co
