ADG3257

PRODUCTION

High Speed, 3.3 V/5 V Quad 2:1 Mux/Demux (4-Bit, 1 of 2) Bus Switch

Analog Devices ADG3257 Product Info

10 February 2026 5

Features

100 ps Propagation Delay through the Switch
2 Ω Max Switches Connect Inputs to Outputs
Data Rates up to 933 Mbps
Single 3.3 V/5 V Supply Operation
Level Translation Operation

Ultralow Quiescent Supply Current (1 nA Typical)
Switches remain in the off state when power is off
3.5 ns Switching

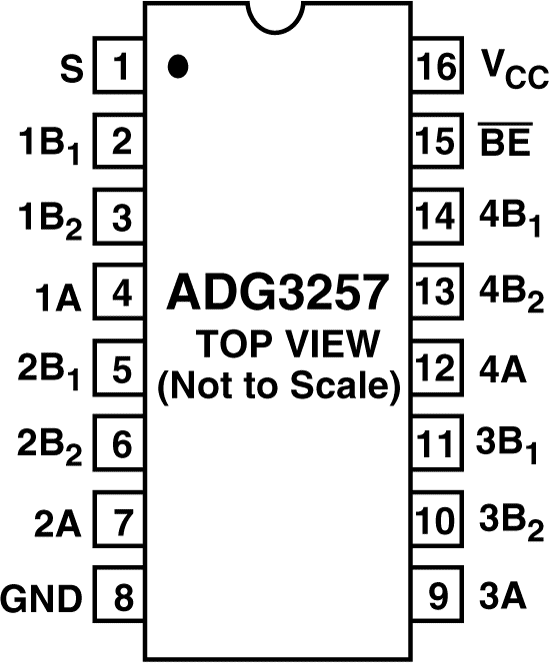

Standard '3257 Type Pinout

Part details & applications

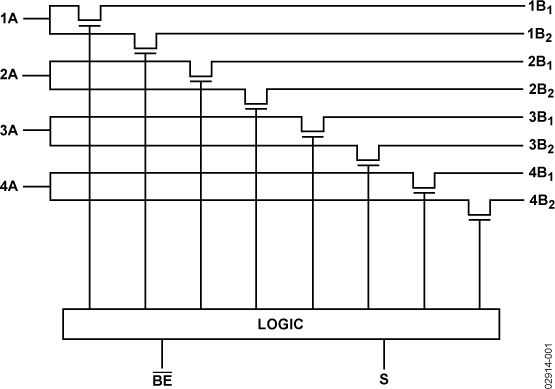

The ADG3257 is a CMOS bus switch comprising four 2:1 multiplexer/demultiplexers with high impedance outputs. The device is manufactured on a CMOS process, which provides low power dissipation yet gives high switching speed and very low on resistance allowing the inputs to be connected to the outputs without adding propagation delay or generating additional ground bounce noise.

The ADG3257 operates from a single 3.3 V/5 V supply. The control logic for each switch is shown in the Truth Table in the data sheet. These switches are bi-directional when ON. In the OFF condition, signal levels up to the supplies are blocked.

This Bus Switch is suited to both switching and level translation application. It may be used in applications requiring level translation from 3.3 V to 2.5V when powered from 3.3 V. Additionally, with a diode connected in series with 5 V V_DD, the ADG3257 may also be used in applications requiring 5 V to 3.3 V level translation.

PRODUCT HIGHLIGHTS

0.1 ns propagation delay through switch.
2 Ω switches connect inputs to outputs.
Bidirectional operation.
Ultralow power dissipation.
16-lead QSOP package.
