ACTIVE
Bits (#) |
4 |
Data rate (max) (Mbps) |
60 |
Topology |
Open drain, Push-Pull |
Direction control (typ) |
Auto-direction |
Vin (min) (V) |
1.1 |
Vin (max) (V) |
3.6 |
Vout (min) (V) |
0.88 |
Vout (max) (V) |
3.6 |
Applications |
MMC, SD Card, SDIO |
Features |
EMI filtering, Edge rate accelerator |
Technology family |
TXS |
Supply current (max) (mA) |
0.018 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

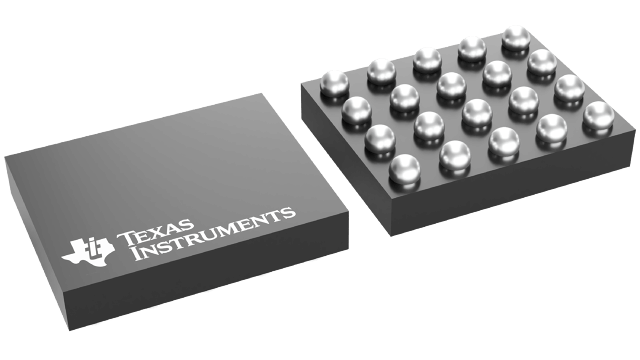

DSBGA (YFP)-20-3.96 mm² 1.8 x 2.2

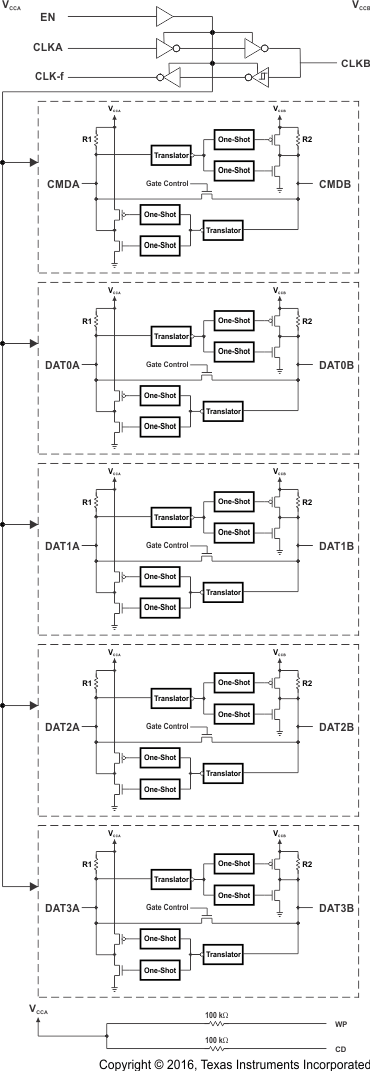

The TXS0206A is a level shifter for interfacing microprocessors with MultiMediaCards (MMCs), secure digital (SD) cards, and Memory Stick™ cards.
The voltage-level translator has two supply voltage pins. VCCA as well as VCCB can be operated over the full range of 1.1 V to 3.6 V. The TXS0206A enables system designers to easily interface applications processors or digital basebands to memory cards and SDIO peripherals operating at a different I/O voltage level.
The TXS0206A is offered in a 20-bump wafer chip scale package (WCSP). This package has dimensions of 1.96 mm × 1.56 mm, with a 0.4-mm ball pitch for effective board-space savings. Memory cards are widely used in mobile phones, PDAs, digital cameras, personal media players, camcorders, set-top boxes, etc. Low static power consumption and small package size make the TXS0206A an ideal choice for these applications.
