ACTIVE
Number of channels |
1 |
Technology family |
LVC |
Supply voltage (min) (V) |
1.65 |
Supply voltage (max) (V) |
5.5 |
Input type |
Standard CMOS |
Output type |
Push-Pull |
Clock frequency (max) (MHz) |
150 |
IOL (max) (mA) |
32 |
IOH (max) (mA) |
-32 |
Supply current (max) (µA) |
10 |
Features |
Balanced outputs, Over-voltage tolerant inputs |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Automotive |
SOT-SC70 (DCK)-5-4.2 mm² 2 x 2.1

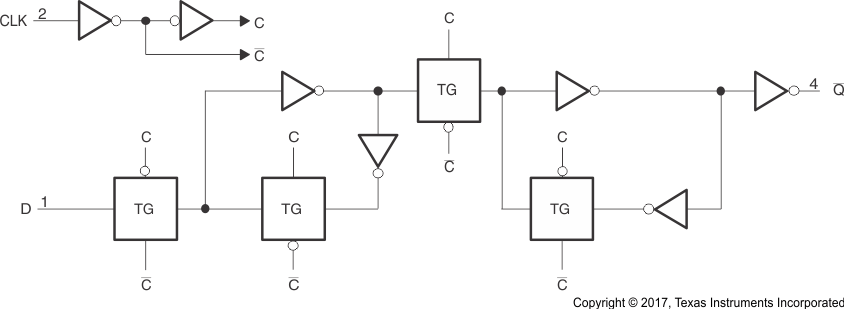

The SN74LVC1G80-Q1 device is an automotive AEC-Q100 qualified, single positive-edge-triggered D-type flip-flop that is designed for 1.65-V to 5.5-V VCC operation.
When data at the data (D) input meets the setup time requirement, the data is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the level at the output.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.
