DS90CP04
  • DS90CP04
  • DS90CP04

DS90CP04

ACTIVE

1.5-Gbps 4x4 LVDS crosspoint switch

Texas Instruments DS90CP04 Product Info

1 April 2026 1

Parameters

Function

Crosspoint

Protocols

CML, LVDS, LVPECL

Number of transmitters

4

Number of receivers

4

Supply voltage (V)

2.5

Signaling rate (Mbps)

1500

Input signal

CML, LVDS, LVPECL

Output signal

LVDS

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

WQFN (NJE)-32-36 mm² 6 x 6

Features

  • DC - 1.5 Gbps Low Jitter, Low Skew Operation
  • Pin and Serial Interface Configurable, Fully Differential, Non-blocking Architecture
  • Wide Input Common Mode Voltage Range Enables Easy Interface to LVDS/LVPECL/2.5V-CML Drivers
  • TRI-STATE LVDS Outputs
  • Serial Control Interface with Read-back Capability
  • Double Register Loading
  • Single +2.5V Supply
  • Small 6x6 mm WQFN-32 Space Saving Package
  • Fabricated with Advanced CMOS Process Technology

All trademarks are the property of their respective owners.

  • DC - 1.5 Gbps Low Jitter, Low Skew Operation
  • Pin and Serial Interface Configurable, Fully Differential, Non-blocking Architecture
  • Wide Input Common Mode Voltage Range Enables Easy Interface to LVDS/LVPECL/2.5V-CML Drivers
  • TRI-STATE LVDS Outputs
  • Serial Control Interface with Read-back Capability
  • Double Register Loading
  • Single +2.5V Supply
  • Small 6x6 mm WQFN-32 Space Saving Package
  • Fabricated with Advanced CMOS Process Technology

All trademarks are the property of their respective owners.

Description

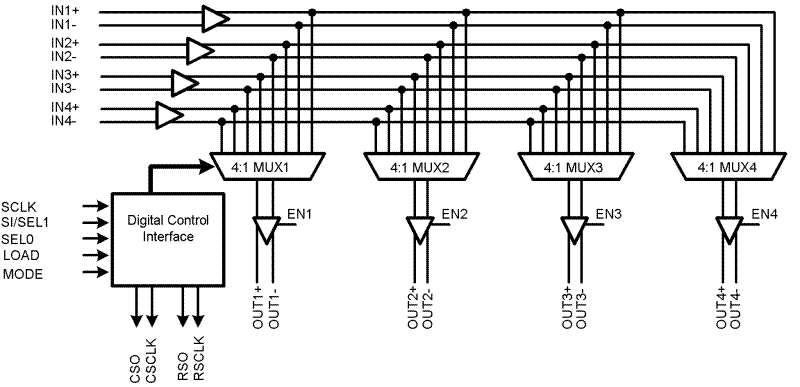

DS90CP04 is a 4x4 digital cross-point switch with broadside input and output pins for efficient board layout. It utilizes Low Voltage Differential Swing (LVDS) technology for low power, high-speed operation. Data paths are fully differential from input to output for low noise. The non-blocking architecture allows connections of any input to any output or outputs. The switch matrix consists of four differential 4:1 multiplexes. Each output channel connects to one of the four inputs common to all multiplexers.

A simple serial control interface or a configuration select port is activated by the state of the MODE pin. When utilizing the serial control interface a single load command will update the new switch configuration for all outputs simultaneously.

DS90CP04 is a 4x4 digital cross-point switch with broadside input and output pins for efficient board layout. It utilizes Low Voltage Differential Swing (LVDS) technology for low power, high-speed operation. Data paths are fully differential from input to output for low noise. The non-blocking architecture allows connections of any input to any output or outputs. The switch matrix consists of four differential 4:1 multiplexes. Each output channel connects to one of the four inputs common to all multiplexers.

A simple serial control interface or a configuration select port is activated by the state of the MODE pin. When utilizing the serial control interface a single load command will update the new switch configuration for all outputs simultaneously.
