TPS65921
  • TPS65921
  • TPS65921

TPS65921

ACTIVE

Integrated Power Management IC (PMIC) with 3 DC/DC's, 4 LDOs, USB HS Transceiver Linux Mainline Status

Texas Instruments TPS65921 Product Info

1 April 2026 1

Parameters

Processor supplier

Texas Instruments

Processor name

OMAP

Product type

Processor and FPGA

Regulated outputs (#)

7

Step-down DC/DC converter

3

Step-up DC/DC converter

0

LDO

4

Vin (min) (V)

2.7

Vin (max) (V)

5.5

Vout (min) (V)

0.6

Vout (max) (V)

3.15

Iout (max) (A)

1.2

Configurability

Factory programmable

Features

Comm control, Power sequencing

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Step-down DC/DC controller

0

Step-up DC/DC controller

0

Switching frequency (typ) (kHz)

3200

Package

JRBGA (ZQZ)-120-36 mm² 6 x 6

Features

  • Three Step-Down Converters:
    • Up to 1.2 A of Output Current for VDD1
      • TPS65921B Supports VDD1 up to 1.2 A
      • TPS65921B1 Supports VDD1 up to 1.4 A (Necessary for 1-GHz Operation)
    • SmartReflex Dynamic Voltage Management
    • 3.2-MHz Fixed Frequency Operation
    • VIN Range from 2.7 to 4.5 V
    • Typical 30 µA Quiescent per Converter
  • Four General-Purpose Configurable LDOs:
    • Dynamic Voltage Scaling
    • 220-mA Maximum Current for One LDO
    • VIN Range from 2.7 to 4.5 V
    • 2 LDOs With Low Noise and High PSRR
  • RTC With Alarm Wake-Up Mechanism
  • Clock Management
    • 32-kHz Crystal Oscillator
    • Clock Slicer for 26, 19.2, and 38.4 MHz
    • HF Clock Output Buffer
  • USB:
    • USB HS 2.0 Transceiver
    • USB 1.3 OTG-Compliant
    • 12-Bit ULPI 1.1 Interface
    • USB Power Supply (5-V CP for VBUS)
  • Control
    • High-Speed I2C Interface
    • All Resource Configurable by I2C
  • Keypad Interface up to 8 × 8
  • 10-Bit A/D Converter
  • Hot-Die, Thermal Shutdown Protection
  • µ*BGA 120 Balls ZQZ
  • Three Step-Down Converters:
    • Up to 1.2 A of Output Current for VDD1
      • TPS65921B Supports VDD1 up to 1.2 A
      • TPS65921B1 Supports VDD1 up to 1.4 A (Necessary for 1-GHz Operation)
    • SmartReflex Dynamic Voltage Management
    • 3.2-MHz Fixed Frequency Operation
    • VIN Range from 2.7 to 4.5 V
    • Typical 30 µA Quiescent per Converter
  • Four General-Purpose Configurable LDOs:
    • Dynamic Voltage Scaling
    • 220-mA Maximum Current for One LDO
    • VIN Range from 2.7 to 4.5 V
    • 2 LDOs With Low Noise and High PSRR
  • RTC With Alarm Wake-Up Mechanism
  • Clock Management
    • 32-kHz Crystal Oscillator
    • Clock Slicer for 26, 19.2, and 38.4 MHz
    • HF Clock Output Buffer
  • USB:
    • USB HS 2.0 Transceiver
    • USB 1.3 OTG-Compliant
    • 12-Bit ULPI 1.1 Interface
    • USB Power Supply (5-V CP for VBUS)
  • Control
    • High-Speed I2C Interface
    • All Resource Configurable by I2C
  • Keypad Interface up to 8 × 8
  • 10-Bit A/D Converter
  • Hot-Die, Thermal Shutdown Protection
  • µ*BGA 120 Balls ZQZ

Description

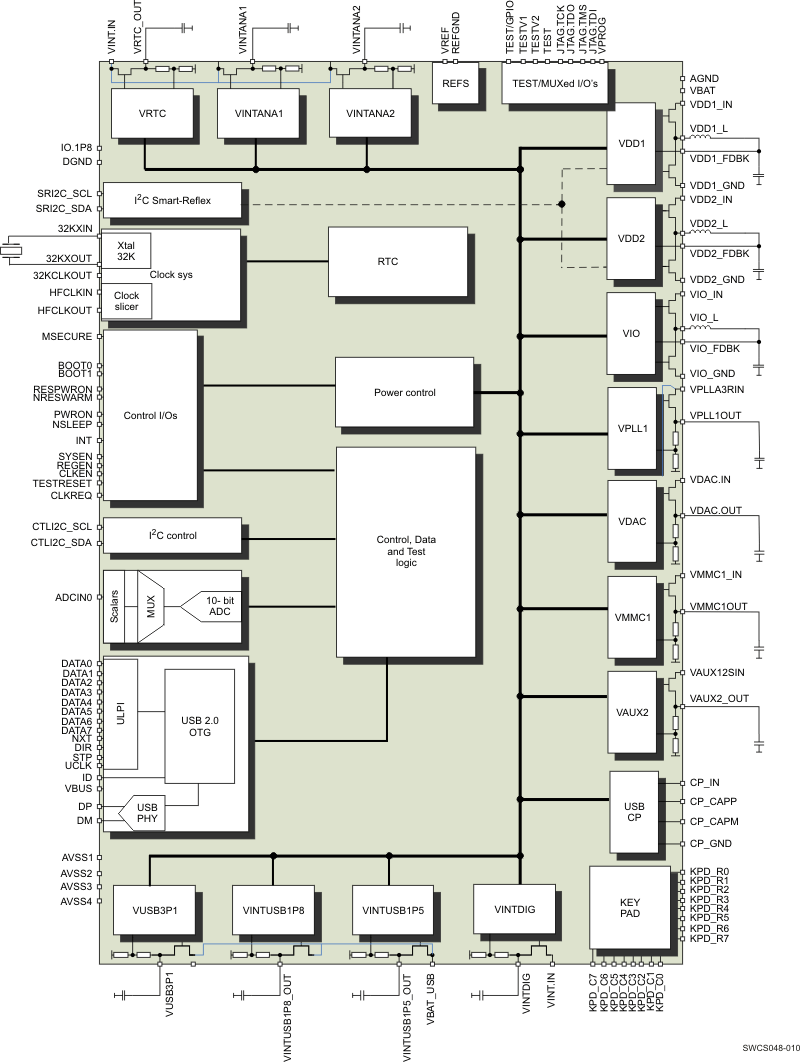

The TPS65921 device is a highly integrated power-management circuit (IC) that supports the power and peripheral requirements of the OMAP application processors. The device contains power management, a universal serial bus (USB) high-speed (HS) transceiver, an analog-to-digital converter (ADC), a real-time clock (RTC), a keypad interface, and an embedded power control (EPC). The power portion of the device contains three buck converters, two controllable by a dedicated SmartReflex class-3 interface, multiple low-dropout (LDO) regulators, an EPC to manage the power-sequencing requirements of OMAP, and an RTC module. The USB module provides an HS 2.0 transceiver suitable for direct connection to the OMAP universal transceiver macrocell interface (UTMI) + low pin interface (ULPI) with an integrated charge pump (CP).

The device also provides auxiliary modules: ADC, keypad interface, and general-purpose inputs/outputs (GPIOs) muxed with the JTAG functions. The keypad interface implements a built-in scanning algorithm to decode hardware-based key presses and to reduce software use, with multiple additional GPIOs that can be used as interrupts when they are configured as inputs.

The TPS65921 device is a highly integrated power-management circuit (IC) that supports the power and peripheral requirements of the OMAP application processors. The device contains power management, a universal serial bus (USB) high-speed (HS) transceiver, an analog-to-digital converter (ADC), a real-time clock (RTC), a keypad interface, and an embedded power control (EPC). The power portion of the device contains three buck converters, two controllable by a dedicated SmartReflex class-3 interface, multiple low-dropout (LDO) regulators, an EPC to manage the power-sequencing requirements of OMAP, and an RTC module. The USB module provides an HS 2.0 transceiver suitable for direct connection to the OMAP universal transceiver macrocell interface (UTMI) + low pin interface (ULPI) with an integrated charge pump (CP).

The device also provides auxiliary modules: ADC, keypad interface, and general-purpose inputs/outputs (GPIOs) muxed with the JTAG functions. The keypad interface implements a built-in scanning algorithm to decode hardware-based key presses and to reduce software use, with multiple additional GPIOs that can be used as interrupts when they are configured as inputs.
