TUSB1044A
  • TUSB1044A
  • TUSB1044A

TUSB1044A

ACTIVE

USB Type-C 10Gbps USB 3.2 x2 multi-protocol bi-directional linear redriver

Texas Instruments TUSB1044A Product Info

1 April 2026 0

Parameters

Type

Redriver

Function

Type-C, USB 3.0

USB speed (Mbps)

10000

Supply voltage (max) (V)

3.6

Supply voltage (min) (V)

3

Ron (typ) (mΩ)

5000

Input/output voltage (min) (V)

0

Input/output voltage (max) (V)

3.6

Configuration

Reversible 4 Channel Linear Redriver, USB3

Features

Multi-Protocol Bi-directional Linear Redriver

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Supply current (max) (µA)

175

ESD HBM (typ) (kV)

5

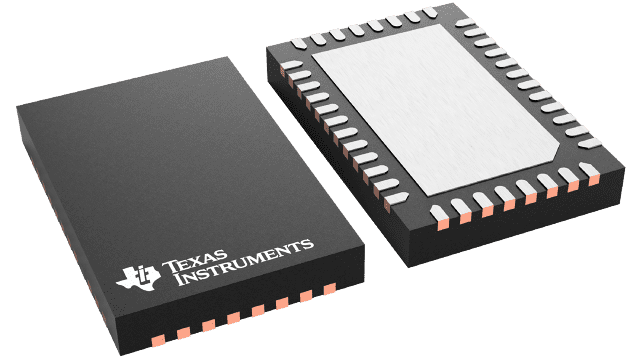

Package

WQFN (RNQ)-40-24 mm² 6 x 4

Features

  • Protocol agnostic reversible 4-channel linear redriver supporting up to 10Gbps
    • USB Type-C with USB 3.2 Gen 2 x2 and DisplayPort™ 2.1 as alternate mode
  • Supports processors with USB 3.2 and DisplayPort™ mux integrated for Type-C applications
  • Supports signal conditioning inside Type-C cable
  • Cross-point mux for SBU signals
  • Linear equalization up to 11dB at 4.05GHz
  • GPIO and I2C control for channel direction and equalization
  • Advanced power management by monitoring USB power states and snooping DP link training
  • Configuration through GPIO or I2C
  • Hot-plug capable
  • Single 3.3V supply
  • Industrial temperature: –40°C to 85°C (TUSB1044AI)
  • Commercial temperature: 0°C to 70°C (TUSB1044A)
  • 6mm × 4mm, 0.4mm pitch, 40-pin QFN package
  • Protocol agnostic reversible 4-channel linear redriver supporting up to 10Gbps
    • USB Type-C with USB 3.2 Gen 2 x2 and DisplayPort™ 2.1 as alternate mode
  • Supports processors with USB 3.2 and DisplayPort™ mux integrated for Type-C applications
  • Supports signal conditioning inside Type-C cable
  • Cross-point mux for SBU signals
  • Linear equalization up to 11dB at 4.05GHz
  • GPIO and I2C control for channel direction and equalization
  • Advanced power management by monitoring USB power states and snooping DP link training
  • Configuration through GPIO or I2C
  • Hot-plug capable
  • Single 3.3V supply
  • Industrial temperature: –40°C to 85°C (TUSB1044AI)
  • Commercial temperature: 0°C to 70°C (TUSB1044A)
  • 6mm × 4mm, 0.4mm pitch, 40-pin QFN package

Description

The TUSB1044A is a USB Type-C Alt Mode redriver switch that supports data rates up to 10Gbps. This protocol-agnostic linear redriver can support USB Type-C Alt Mode interfaces including DisplayPort™.

The TUSB1044A provides several levels of receive linear equalization to compensate for inter-symbol interference (ISI) due to cable and board trace loss. The device operates on a single 3.3V supply and comes in a commercial and industrial temperature range.

All four lanes of the TUSB1044A are reversible and designed to make the device a versatile signal conditioner that can be used in many applications.

The TUSB1044A is a USB Type-C Alt Mode redriver switch that supports data rates up to 10Gbps. This protocol-agnostic linear redriver can support USB Type-C Alt Mode interfaces including DisplayPort™.

The TUSB1044A provides several levels of receive linear equalization to compensate for inter-symbol interference (ISI) due to cable and board trace loss. The device operates on a single 3.3V supply and comes in a commercial and industrial temperature range.

All four lanes of the TUSB1044A are reversible and designed to make the device a versatile signal conditioner that can be used in many applications.
