DS90C402

ACTIVE

Dual low voltage differential signaling receiver

Texas Instruments DS90C402 Product Info

1 April 2026 0

Parameters

Function

Receiver

Protocols

LVDS

Number of transmitters

0

Number of receivers

2

Supply voltage (V)

5

Signaling rate (Mbps)

155.5

Input signal

LVDS

Output signal

TTL

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

SOIC (D)-8-29.4 mm² 4.9 x 6

Features

  • Ultra Low Power Dissipation
  • Operates above 155.5 Mbps
  • Standard TIA/EIA-644
  • 8 Lead SOIC Package saves PCB space
  • VCM ±1V center around 1.2V
  • ±100 mV Receiver Sensitivity

All trademarks are the property of their respective owners.

  • Ultra Low Power Dissipation
  • Operates above 155.5 Mbps
  • Standard TIA/EIA-644
  • 8 Lead SOIC Package saves PCB space
  • VCM ±1V center around 1.2V
  • ±100 mV Receiver Sensitivity

All trademarks are the property of their respective owners.

Description

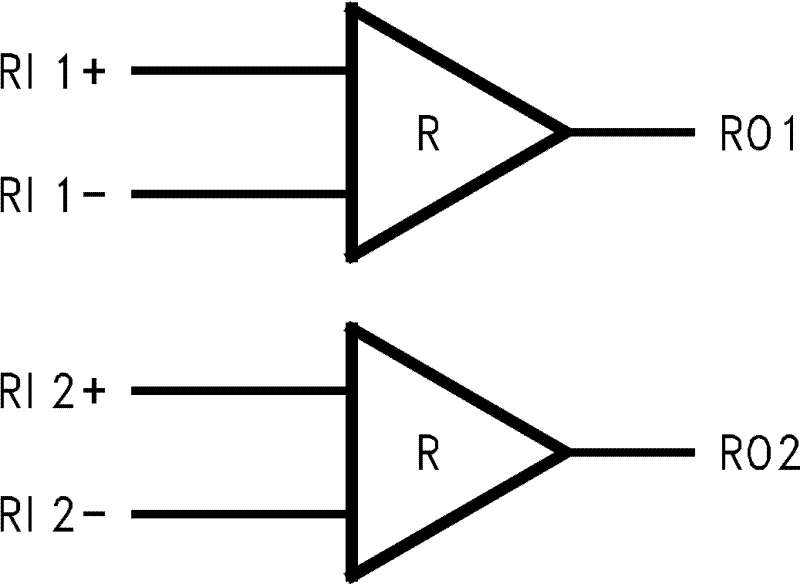

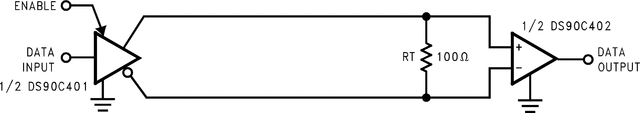

The DS90C402 is a dual receiver device optimized for high data rate and low power applications. This device along with the DS90C401 provides a pair chip solution for a dual high speed point-to-point interface. The device is in a PCB space saving 8 lead small outline package. The receiver offers ±100 mV threshold sensitivity, in addition to common-mode noise protection.

The DS90C402 is a dual receiver device optimized for high data rate and low power applications. This device along with the DS90C401 provides a pair chip solution for a dual high speed point-to-point interface. The device is in a PCB space saving 8 lead small outline package. The receiver offers ±100 mV threshold sensitivity, in addition to common-mode noise protection.
