Texas Instruments TPS54294 Product Info

Parameters

Rating	Catalog
Topology	Buck
Iout (max) (A)	2
Vin (max) (V)	18
Vin (min) (V)	4.5
Vout (max) (V)	7
Vout (min) (V)	0.76
Features	Enable, Light-load efficiency, Power good, Soft-start fixed, Synchronous rectification
Control mode	D-CAP2
Operating temperature range (°C)	-40 to 85
Iq (typ) (A)	0.0013
Duty cycle (max) (%)	85

Package

HTSSOP (PWP)-16-32 mm² 5 x 6.4

Features

D-CAP2 Control Mode
- Fast Transient Response
- No External Parts Required For Loop
  Compensation
- Compatible with Ceramic Output
  Capacitors
Wide Input Voltage Range : 4.5 V to 18 V
Output Voltage Range : 0.76V to 7.0V
Highly Efficient Integrated FETs Optimized
for Low Duty Cycle Applications
- 150 mΩ (High Side) and 100 mΩ
  (Low Side)
High Initial Reference Accuracy
Low-Side r_DS(on) Loss-Less Current
Sensing
Fixed Soft Start : 1.0ms
Non-Sinking Pre-Biased Soft Start
Powergood
700 kHz Switching Frequency
Cycle-by-Cycle Over-Current Limit Control
OCL/OVP/UVP/UVLO/TSD Protections
Adaptive Gate Drivers with Integrated Boost PMOS Switch
OCP Constant Due To Thermally Compensated r_DS(on)
with 4000ppm/℃
16-Pin HTSSOP, 16-Pin VQFN
Auto-Skip Eco-mode — for High Efficiency at Light Load

D-CAP2 Control Mode
- Fast Transient Response
- No External Parts Required For Loop
  Compensation
- Compatible with Ceramic Output
  Capacitors
Wide Input Voltage Range : 4.5 V to 18 V
Output Voltage Range : 0.76V to 7.0V
Highly Efficient Integrated FETs Optimized
for Low Duty Cycle Applications
- 150 mΩ (High Side) and 100 mΩ
  (Low Side)
High Initial Reference Accuracy
Low-Side r_DS(on) Loss-Less Current
Sensing
Fixed Soft Start : 1.0ms
Non-Sinking Pre-Biased Soft Start
Powergood
700 kHz Switching Frequency
Cycle-by-Cycle Over-Current Limit Control
OCL/OVP/UVP/UVLO/TSD Protections
Adaptive Gate Drivers with Integrated Boost PMOS Switch
OCP Constant Due To Thermally Compensated r_DS(on)
with 4000ppm/℃
16-Pin HTSSOP, 16-Pin VQFN
Auto-Skip Eco-mode — for High Efficiency at Light Load

Description

The TPS54294 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54294 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54294 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54294 to maintain high efficiency during lighter load conditions. The TPS54294 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.

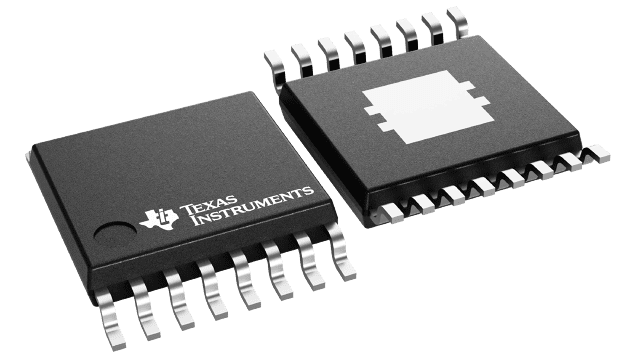

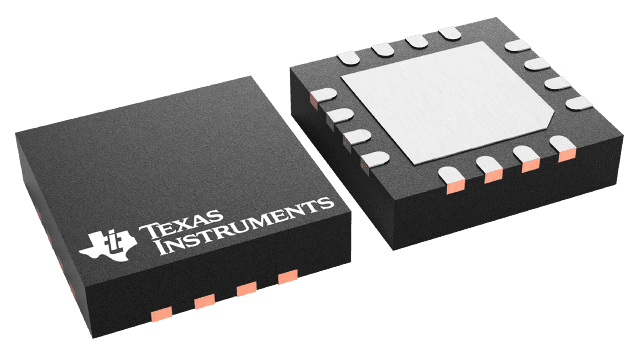

The TPS54294 is available in a 4.4mm × 5.0mm 16-pin TSSOP (PWP) package, and 4mm x 4mm 16-pin VQFN (RSA) package specified for an ambient temperature range from –40°C to 85°C.

The TPS54294 is a dual, adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54294 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54294 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54294 to maintain high efficiency during lighter load conditions. The TPS54294 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5V to 18V.

The TPS54294 is available in a 4.4mm × 5.0mm 16-pin TSSOP (PWP) package, and 4mm x 4mm 16-pin VQFN (RSA) package specified for an ambient temperature range from –40°C to 85°C.
