ACTIVE
Resolution (Bits) |
12 |
Number of DAC channels |
8 |
Interface type |
SPI |
Output type |
Buffered Voltage |
Output voltage range (V) |
0 to 5.5 |
INL (max) (±LSB) |
6 |
Settling time (µs) |
1 |
Reference type |
Ext |
Architecture |
String |
Rating |
Catalog |
Sample/update rate (Msps) |
0.283 |
Power consumption (typ) (mW) |
18 |
Operating temperature range (°C) |
-40 to 85 |
Product type |
General-purpose DAC |
SOIC (DW)-20-131.84 mm² 12.8 x 10.3

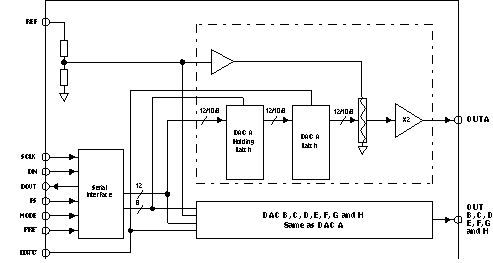

The TLV5610, TLV5608, and TLV5629 are pin-compatible, eight-channel, 12-/10-/8-bit voltage output DACs each with a flexible serial interface. The serial interface allows glueless interface to TMS320 and SPI, QSPI, and Microwire serial ports. It is programmed with a 16-bit serial string containing 4 control and 12 data bits.
Additional features are a power-down mode, an LDAC input for simultaneous update of all eight DAC outputs, and a data output which can be used to cascade multiple devices.
The resistor string output voltage is buffered by a rail-to-rail output amplifier with a programmable settling time to allow the designer to optimize speed vs power dissipation. The buffered, high-impedance reference input can be connected to the supply voltage.
Implemented with a CMOS process, the DACs are designed for single-supply operation from 2.7 V to 5.5 V, and can operate on two separate analog and digital power supplies. The devices are available in 20-pin SOIC and TSSOP packages.
