ACTIVE
Audio input type |
Digital Input |
Architecture |
Class-D Boosted, Smart Amp |
Speaker channels (max) |
Mono |
Control interface |
I2C |
Output power (W) |
6.1 |
Power stage supply (max) (V) |
16 |
Power stage supply (min) (V) |
2.7 |
THD + N at 1 kHz (%) |
0.01 |
Load (min) (Ω) |
3.2 |
Analog supply voltage (min) (V) |
2.7 |
Analog supply voltage (max) (V) |
5.5 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

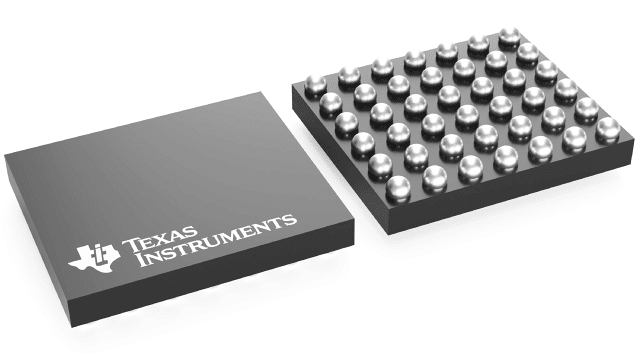

DSBGA (YBG)-42-7.606386 mm² 2.997 x 2.538
PVDD: VBAT to 15V (QFN, VBAT < 3.5V)

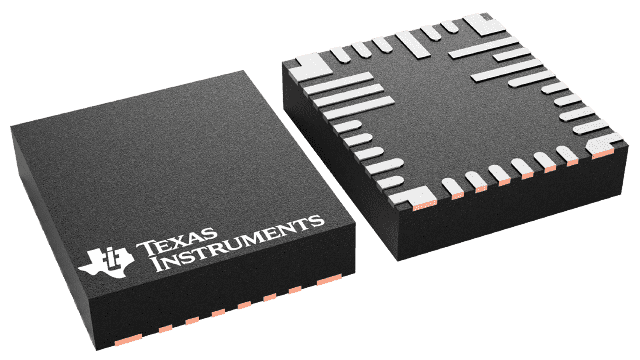

The TAS2563 is a digital input Class-D audio amplifier optimized for efficiently driving high peak power into small loudspeakers. The Class-D amplifier is capable of delivering 6.1W of peak power into a 4Ω load at battery voltage of 3.6V using the integrated 11.5V Class-H boost, or 10W peak power into 4Ω load in boost bypass mode using external 12V supply.

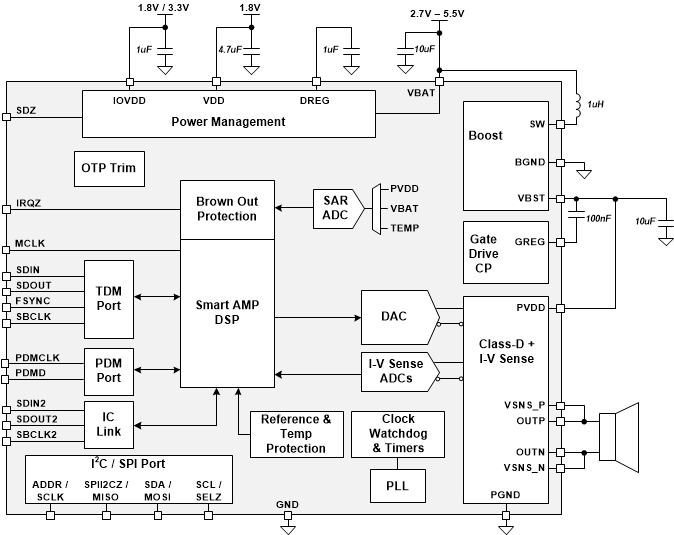

An on-chip, low-latency DSP supports Texas Instruments SmartAmp speaker protection algorithms. The integrated current and voltage sense provides for real-time monitoring of the loudspeakers, which permits pushing peak sound pressure levels (SPL) while keeping speakers from being damaged.
The integrated look-ahead Class-H boost dynamically adjusts boost voltage during playback, increasing efficiency and saving battery life in battery-powered systems. For regulated wall-powered systems, TAS2563 also features a boost bypass mode, supporting supply voltages of up to 16V for even higher output power.
Two PDM microphone inputs simplify the audio signal chain for two-way audio systems, interfacing digital microphones with the host processor. A battery-tracking peak voltage limiter with brown-out protection prevents systems shutdowns by optimizing amplifier headroom over the entire charge cycle.
