ACTIVE
Rating |
Catalog |
Topology |
Buck |
Iout (max) (A) |
2 |
Vin (max) (V) |
18 |
Vin (min) (V) |
4.5 |
Vout (max) (V) |
7 |
Vout (min) (V) |
0.76 |
Features |
Enable, Soft Start Adjustable, Synchronous Rectification |
Control mode |
D-CAP2 |
Operating temperature range (°C) |
-40 to 85 |
Iq (typ) (A) |
0.0008 |
Duty cycle (max) (%) |
90 |
HSOIC (DDA)-8-29.4 mm² 4.9 x 6

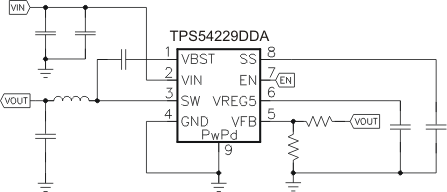

The TPS54229 is an adaptive on-time D-CAP2 mode synchronous buck converter. TheTPS54229 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54229 uses the D-CAP2 mode control which provides a fast transient response with no external compensation components. The TPS54229 also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V VIN input. The output voltage can be programmed between 0.76 V and 7 V. The device also features an adjustable soft start time. The TPS54229 is available in the 8-pin DDA package, and designed to operate from –40°C to 85°C.
