Texas Instruments OPA2211A Product Info

Parameters

Number of channels	2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	36
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	4.5
Vos (offset voltage at 25°C) (max) (mV)	0.15
Offset drift (typ) (µV/°C)	0.35
Input bias current (max) (pA)	175000
GBW (typ) (MHz)	45
Features	Shutdown, Small Size
Slew rate (typ) (V/µs)	27
Rail-to-rail	Out
Iq per channel (typ) (mA)	3.6
Vn at 1 kHz (typ) (nV√Hz)	1.1
CMRR (typ) (dB)	120
Rating	Catalog
Operating temperature range (°C)	-40 to 125
Iout (typ) (A)	0.03
Architecture	Bipolar
Input common mode headroom (to negative supply) (typ) (V)	1.8
Input common mode headroom (to positive supply) (typ) (V)	-1.4
Output swing headroom (to negative supply) (typ) (V)	0.2
Output swing headroom (to positive supply) (typ) (V)	-0.2
THD + N at 1 kHz (typ) (%)	0.000015

Package

HSOIC (DDA)-8-29.4 mm² 4.9 x 6

Features

Low voltage noise: 1.1 nV/√Hz at 1 kHz
Input voltage noise: 80 nV_PP (0.1 to 10 Hz)
THD + N: –136 dB (G = 1, ƒ = 1 kHz)
Offset voltage: 125 µV (maximum)
Offset voltage drift: 0.35 µV/°C (typical)
Low supply current: 3.6 mA/Ch (typical)
Unity-gain stable
Gain bandwidth product:
- 80 MHz (G = 100)
- 45 MHz (G = 1)
Slew rate: 27 V/µs
16-Bit settling: 700 ns
Wide supply range:
- ±2.25 to ±18 V, 4.5 V to 36 V
Rail-to-rail output
Output current: 30 mA
SON-8 (3 mm × 3 mm), VSSOP-8, and SOIC-8

Low voltage noise: 1.1 nV/√Hz at 1 kHz
Input voltage noise: 80 nV_PP (0.1 to 10 Hz)
THD + N: –136 dB (G = 1, ƒ = 1 kHz)
Offset voltage: 125 µV (maximum)
Offset voltage drift: 0.35 µV/°C (typical)
Low supply current: 3.6 mA/Ch (typical)
Unity-gain stable
Gain bandwidth product:
- 80 MHz (G = 100)
- 45 MHz (G = 1)
Slew rate: 27 V/µs
16-Bit settling: 700 ns
Wide supply range:
- ±2.25 to ±18 V, 4.5 V to 36 V
Rail-to-rail output
Output current: 30 mA
SON-8 (3 mm × 3 mm), VSSOP-8, and SOIC-8

Description

The OPAx211 series of precision operational amplifiers achieves very low 1.1-nV/√Hz noise density with a supply current of only 3.6 mA. This series also offers rail-to-rail output swing, which maximizes dynamic range.

The extremely low voltage and low current noise, high-speed, and wide output swing of the OPAx211 series make these devices an excellent choice as a loop filter amplifier in PLL applications.

In precision data acquisition applications, the OPAx211 series of operational amplifiers provides 700-ns settling time to 16-bit accuracy throughout 10-V output swings. This ac performance, combined with only 125 µV of offset and 0.35 µV/°C of drift over temperature, makes the OPAx211 series a great choice for driving high-precision 16-bit analog-to-digital converters (ADCs) or buffering the output of high-resolution digital-to-analog converters (DACs).

The OPAx211 series is specified over a wide dual-power supply range of ±2.25 to ±18 V, or for single-supply operation from 4.5 to 36 V.

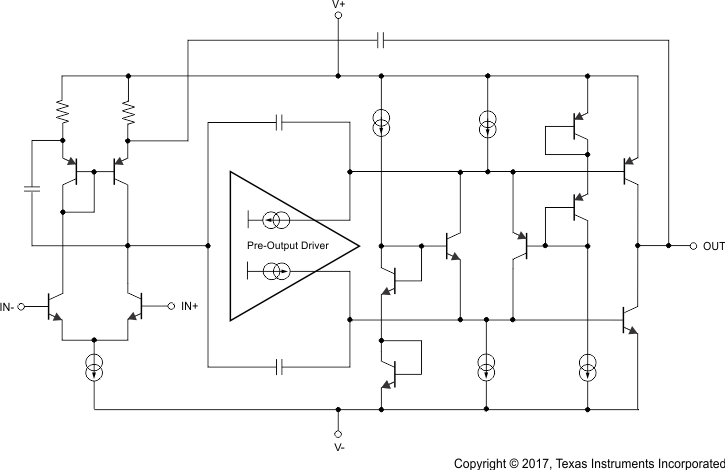

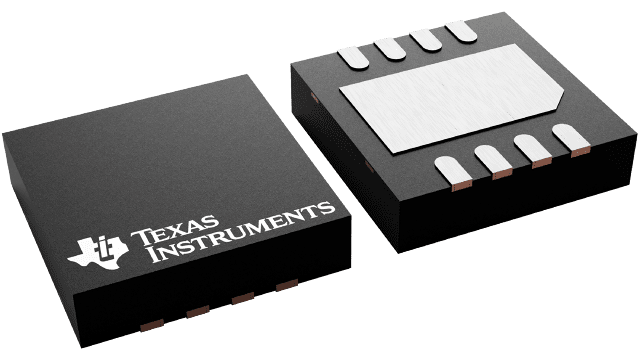

The OPA211 is available in the small SON-8 (3 mm × 3 mm), VSSOP-8, and SOIC-8 packages. The dual version OPA2211 is available in a SON-8 (3 mm × 3 mm) or an SO-8 PowerPAD™ package. This series of operational amplifiers is specified from T_A = –40°C to +125°C.

The OPAx211 series of precision operational amplifiers achieves very low 1.1-nV/√Hz noise density with a supply current of only 3.6 mA. This series also offers rail-to-rail output swing, which maximizes dynamic range.

The extremely low voltage and low current noise, high-speed, and wide output swing of the OPAx211 series make these devices an excellent choice as a loop filter amplifier in PLL applications.

In precision data acquisition applications, the OPAx211 series of operational amplifiers provides 700-ns settling time to 16-bit accuracy throughout 10-V output swings. This ac performance, combined with only 125 µV of offset and 0.35 µV/°C of drift over temperature, makes the OPAx211 series a great choice for driving high-precision 16-bit analog-to-digital converters (ADCs) or buffering the output of high-resolution digital-to-analog converters (DACs).

The OPAx211 series is specified over a wide dual-power supply range of ±2.25 to ±18 V, or for single-supply operation from 4.5 to 36 V.

The OPA211 is available in the small SON-8 (3 mm × 3 mm), VSSOP-8, and SOIC-8 packages. The dual version OPA2211 is available in a SON-8 (3 mm × 3 mm) or an SO-8 PowerPAD™ package. This series of operational amplifiers is specified from T_A = –40°C to +125°C.
