ACTIVE
Product type |
Analog output with integrated comparator |
Common-mode voltage (max) (V) |
36 |
Common-mode voltage (min) (V) |
0 |
Input offset (±) (max) (µV) |
35, 50, 125 |
Input offset drift (±) (typ) (µV/°C) |
0.1 |
Features |
Alert Function, High precision, Low-side Capable |
Rating |
Catalog |
Voltage gain (V/V) |
20, 50, 100 |
CMRR (min) (dB) |
100 |
Bandwidth (kHz) |
450, 500, 550 |
Supply voltage (max) (V) |
5.5 |
Supply voltage (min) (V) |
2.7 |
Iq (max) (mA) |
0.7 |
Number of channels |
1 |
Comparators (#) |
1 |
Gain error (%) |
0.1, 0.15, 0.2 |
Gain error drift (±) (max) (ppm/°C) |
10 |
Slew rate (V/µs) |
4 |
Operating temperature range (°C) |
-40 to 125 |
VSSOP (DGK)-8-14.7 mm² 3 x 4.9

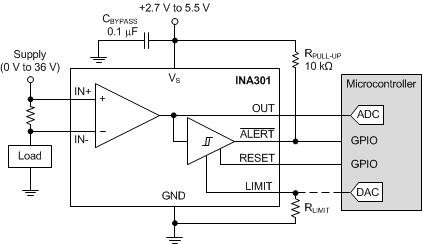

The INA301 includes both a high common-mode, current-sensing amplifier and a high-speed comparator configured to detect overcurrent conditions through measuring the voltage developed across a current-sensing or current-shunt resistor and comparing that voltage to a defined threshold limit. The device features an adjustable limit threshold range that is set using a single external limit-setting resistor. This current-shunt monitor can measure differential voltage signals on common-mode voltages that can vary from 0 V up to 36 V, independent of the supply voltage.
The open-drain alert output can be configured to operate in either a transparent mode where the output status follows the input state or in a latched mode where the alert output is cleared when the latch is reset. The device alert response time is under 1 µs, allowing for quick detection of overcurrent events.
This device operates from a single 2.7-V to 5.5-V supply, drawing a maximum supply current of 700 µA. The device is specified over the extended operating temperature range (–40°C to +125°C), and is available in an 8-pin VSSOP package.
