TPS25730
  • TPS25730
  • TPS25730
  • TPS25730
  • TPS25730

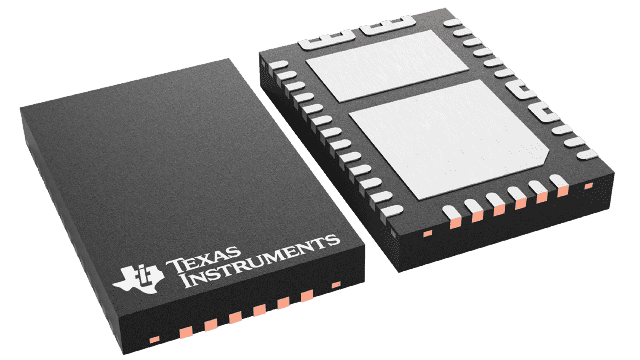

TPS25730

ACTIVE

Sink-only USB Type-C® and USB Power Delivery (PD) controller with no firmware development required

Texas Instruments TPS25730 Product Info

1 April 2026 3

Parameters

Function

Type-C

Type

PD controller

Power role

Sink

Rating

Catalog

Internal power path

20 V 5 A

Data role

DFP, UFP

Alternate mode

No

External power-path control

NFET

Dead battery support

Yes

Operating temperature range (°C)

-40 to 125

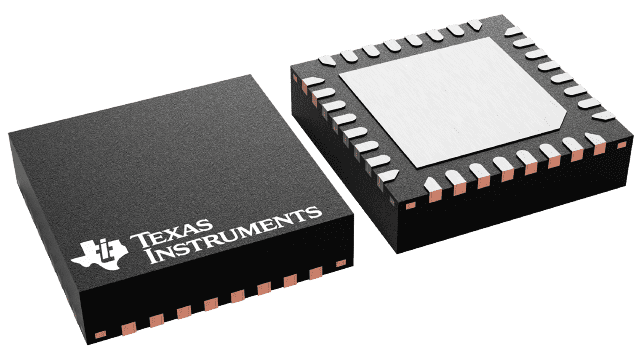

Package

VQFN (RSM)-32-16 mm² 4 x 4

Features

  • PD3.1 compatible for sink only applications
    • PD3.1 is the latest Power Delivery specification from USB-IF
    • PD2 and PD3
  • Fully configurable single port PD controller
    • Optimized for sink only USB Type-C and USB PD applications
    • Complete barrel jack replacement solution for switching to USB Type-C
    • Fully configurable with pin strapping
    • Industrial temperature range supported
    • For a more extensive selection guide, please refer to USB Type-C & PD Portfolio and Selecting a USB Type-C & PD Controller
  • Fully managed integrated power path
    • Integrated overvoltage protection and reverse current protection
  • USB Type-C PD Controller
    • 6 GPIO set functions
    • Cable attach and orientation detection
    • Integrated dead battery Rd
    • Physical layer and policy engine
    • Integrated VBUS 3.3-V LDO for dead battery
    • Power supply from 3.3-V or VBUS source
    • I2C access for external microcontroller
  • PD3.1 compatible for sink only applications
    • PD3.1 is the latest Power Delivery specification from USB-IF
    • PD2 and PD3
  • Fully configurable single port PD controller
    • Optimized for sink only USB Type-C and USB PD applications
    • Complete barrel jack replacement solution for switching to USB Type-C
    • Fully configurable with pin strapping
    • Industrial temperature range supported
    • For a more extensive selection guide, please refer to USB Type-C & PD Portfolio and Selecting a USB Type-C & PD Controller
  • Fully managed integrated power path
    • Integrated overvoltage protection and reverse current protection
  • USB Type-C PD Controller
    • 6 GPIO set functions
    • Cable attach and orientation detection
    • Integrated dead battery Rd
    • Physical layer and policy engine
    • Integrated VBUS 3.3-V LDO for dead battery
    • Power supply from 3.3-V or VBUS source
    • I2C access for external microcontroller

Description

The TPS25730 is a highly integrated stand-alone USB Type-C and Power Delivery (PD) controller optimized for sink only applications supporting USB-C PD Power. The TPS25730 integrates a fully managed power path with robust protection for a complete USB-C PD solution. The TPS25730 also has the ability to control an external power path through the use of internal gate drivers. The TPS25730 is best suited for sink only applications that may have previously been powered by a barrel jack. Using resistor pin strapping, a user can implement a fully featured USB Type-C PD port with the TPS25730 on their platform. There is no need for an external EEPROM, an external microcontroller, or any type of firmware development.

The TPS25730 is intended to make setting up a sink only USB Type-C application simple yet robust. A user has all of the benefits of a barrel jack port, while now taking advantage of the benefits that USB Type-C and USB Type-C PD can bring to their system.
