TPS2400
  • TPS2400
  • TPS2400

TPS2400

ACTIVE

5.5-V over voltage protection controller with 100-V input transient protection

Texas Instruments TPS2400 Product Info

1 April 2026 3

Parameters

Vabsmax_cont (V)

110

Vin (max) (V)

100

Vin (min) (V)

3

Current limit (min) (A)

0.01

Features

Overvoltage cutoff

Fault response

Auto-retry

Overvoltage response

Cut-off

Rating

Catalog

Soft start

Fixed

Quiescent current (Iq) (typ) (A)

0.000065

Quiescent current (Iq) (max) (A)

0.00011

Device type

eFuses and hot swap controllers

Operating temperature range (°C)

-40 to 85

Package

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

  • Up to 100-V Overvoltage Protection
  • 6.9-V Overvoltage Shutdown Threshold
  • 3-V Undervoltage Shutdown Threshold
  • Overvoltage Turnoff Time Less than 1 µs
  • External N-Channel MOSFET Driven by
    Internal Charge Pump
  • 1-mA Maximum Static Supply Current
  • 5-Pin SOT–23 Package
  • –40°C to 85°C Ambient Temperature Range
  • 2.5-kV Human-Body-Model, 500-V CDM
    Electrostatic Discharge Protection
  • Up to 100-V Overvoltage Protection
  • 6.9-V Overvoltage Shutdown Threshold
  • 3-V Undervoltage Shutdown Threshold
  • Overvoltage Turnoff Time Less than 1 µs
  • External N-Channel MOSFET Driven by
    Internal Charge Pump
  • 1-mA Maximum Static Supply Current
  • 5-Pin SOT–23 Package
  • –40°C to 85°C Ambient Temperature Range
  • 2.5-kV Human-Body-Model, 500-V CDM
    Electrostatic Discharge Protection

Description

The TPS2400 overvoltage protection controller is used with an external N-channel MOSFET to isolate sensitive electronics from destructive voltage spikes and surges. It is specifically designed to prevent large voltage transients associated with automotive environments (load dump) from damaging sensitive circuitry. When potentially damaging voltage levels are detected by the TPS2400 the supply is disconnected from the load before any damage can occur.

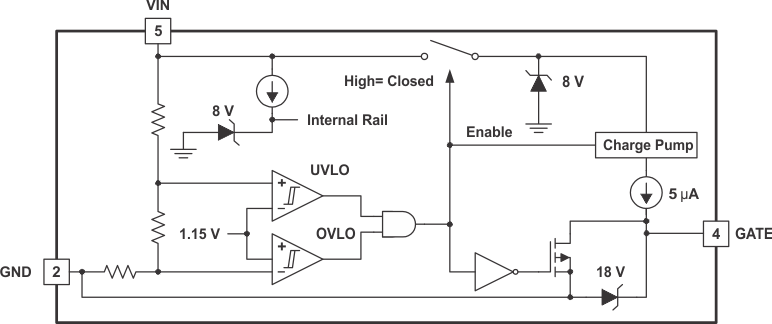

Internal circuitry includes a trimmed band-gap reference, oscillator, Zener diode, charge pump, comparator, and control logic. The TPS2400 device is designed for use with an external N-channel MOSFET, which are readily available in a wide variety of voltages.
