ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
12 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
150 |
Iout (typ) (A) |
0.045 |
GBW (typ) (MHz) |
6.5 |
Slew rate (typ) (V/µs) |
32 |
Vos (offset voltage at 25°C) (max) (mV) |
3.4 |
Offset drift (typ) (V/°C) |
0.000004 |
Iq per channel (typ) (mA) |
3.2 |
Features |
Shutdown |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Input bias current (max) (pA) |
100 |
CMRR (typ) (dB) |
120 |
Rail-to-rail |
No |
Architecture |
FET |

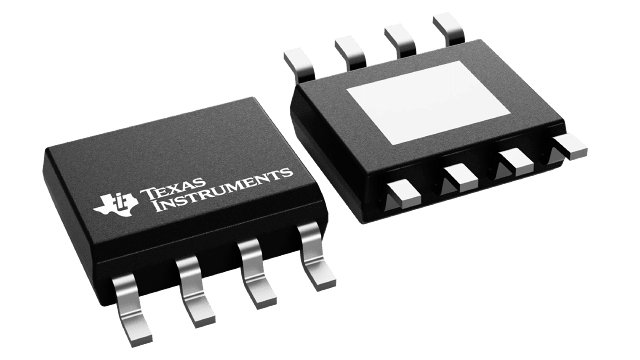

HSOIC (DDA)-8-29.4 mm² 4.9 x 6

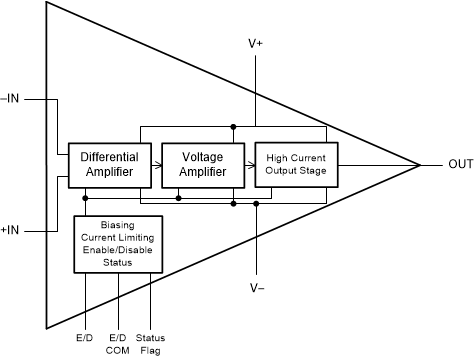

The OPA455 is a high-voltage (150-V), high current drive (45-mA), unity-gain stable operational amplifier with a gain-bandwidth product of 6.5 MHz and slew rate of 32 V/us. As a result of the amplifier wide output range, this device is an excellent choice for high-voltage piezo driving, avalance photodiode biasing, and high-voltage Howland current pump or voltage output stages.
The OPA455 is internally protected against overtemperature conditions and current overloads. The device is fully specified to perform over a wide power-supply range of ±6 V to ±75 V, or on a single supply of 12 V to 150 V. The status flag is an open-drain output that allows the device to be easily referenced to standard, low-voltage, logic circuitry. This high-voltage operational amplifier provides excellent accuracy and wide output swing, and is free from phase-inversion problems that are often found in similar amplifiers.
The output can be disabled using the enable-disable (E/D) pin. The E/D pin has a common return pin to allow for easy interface to low-voltage logic circuitry. This disable is accomplished without disturbing the input signal path, not only saving power but also protecting the load.
