0
ACTIVE
Number of channels |
1 |
Output type |
Open-collector, Open-drain |
Propagation delay time (µs) |
3 |
Vs (max) (V) |
6.5 |
Vs (min) (V) |
1.6 |
Rating |
Automotive |
Features |
Fail-safe, Hysteresis, POR |
Iq per channel (typ) (mA) |
0.00039 |
Vos (offset voltage at 25°C) (max) (mV) |
8 |
Rail-to-rail |
In |
Operating temperature range (°C) |
-40 to 125 |
Input bias current (±) (max) (nA) |
0.002 |
VICR (max) (V) |
0 |
VICR (min) (V) |
0 |
TI functional safety category |
Functional Safety-Capable |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

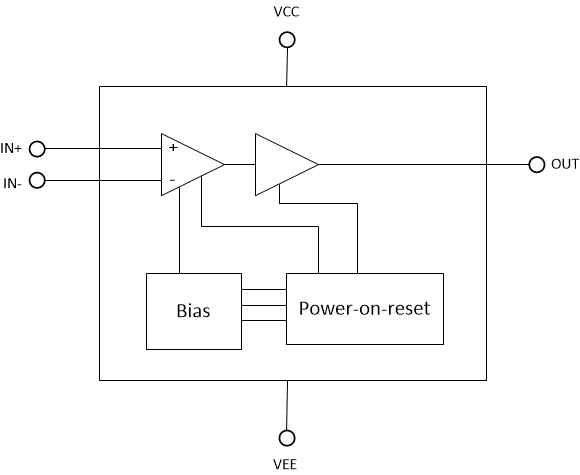

The TLV703x-Q1/TLV704x-Q1 are low-voltage, nanopower comparators with rail-to-rail inputs. These comparators are applicable for space-critical and power conscious designs like infotainment, telematics, and head unit applications.
The TLV703x-Q1 and TLV704x-Q1 offer an excellent combination of power and speed. The benefit of fast response time at nanopower enables power-conscious systems to monitor and respond quickly to fault conditions. With an operating voltage range of 1.6 V to 6.5 V, these comparators are compatible with 1.8 V, 3 V, and 5 V systems.
The TLV703x-Q1 and TLV704x-Q1 also ensure no output phase inversion with overdriven inputs and internal hysteresis, so engineers can use this family of comparators for precision voltage monitoring in harsh, noisy environments where slow-moving input signals must be converted into clean digital outputs.
The TLV703x-Q1 have a push-pull output stage capable of sinking and sourcing milliamps of current. The TLV704x-Q1 have an open-drain output stage that can be pulled beyond VCC.
