Texas Instruments TPS22975 Product Info

Parameters

Imax (A)	6
Vin (max) (V)	5.7
Vin (min) (V)	0.6
Number of channels	1
Features	Inrush current control, Quick output discharge, Thermal shutdown
Quiescent current (Iq) (typ) (µA)	37
Soft start	Adjustable Rise Time
Rating	Catalog
Ron (typ) (mΩ)	16
Shutdown current (ISD) (typ) (µA)	2.3
Current limit type	None
Function	Inrush current control, Thermal shutdown
FET	Internal
Operating temperature range (°C)	-40 to 105
Device type	Load switches

Package

WSON (DSG)-8-4 mm² 2 x 2

Features

Integrated Single-Channel Load Switch
Input Voltage Range: 0.6 V to V_BIAS
V_BIAS Voltage Range: 2.5 V to 5.7 V
On-Resistance (R_ON)
- R_ON = 16 mΩ (typical) at VIN = 0.6 V to 5.7 V,
  V_BIAS = 5.7 V
6-A Maximum Continuous Switch Current
Low Quiescent Current
- 37 µA (typical) at V_IN = V_BIAS = 5 V
Low-Control Input-Threshold Enables Use of
1.2-, 1.8-, 2.5-, and 3.3-V Logic
Configurable Rise Time
Thermal Shutdown
Quick-Output Discharge (QOD) (Optional)
SON 8-pin Package with Thermal Pad
ESD Performance Tested per JESD 22
- 2000-V HBM and 1000-V CDM

Integrated Single-Channel Load Switch
Input Voltage Range: 0.6 V to V_BIAS
V_BIAS Voltage Range: 2.5 V to 5.7 V
On-Resistance (R_ON)
- R_ON = 16 mΩ (typical) at VIN = 0.6 V to 5.7 V,
  V_BIAS = 5.7 V
6-A Maximum Continuous Switch Current
Low Quiescent Current
- 37 µA (typical) at V_IN = V_BIAS = 5 V
Low-Control Input-Threshold Enables Use of
1.2-, 1.8-, 2.5-, and 3.3-V Logic
Configurable Rise Time
Thermal Shutdown
Quick-Output Discharge (QOD) (Optional)
SON 8-pin Package with Thermal Pad
ESD Performance Tested per JESD 22
- 2000-V HBM and 1000-V CDM

Description

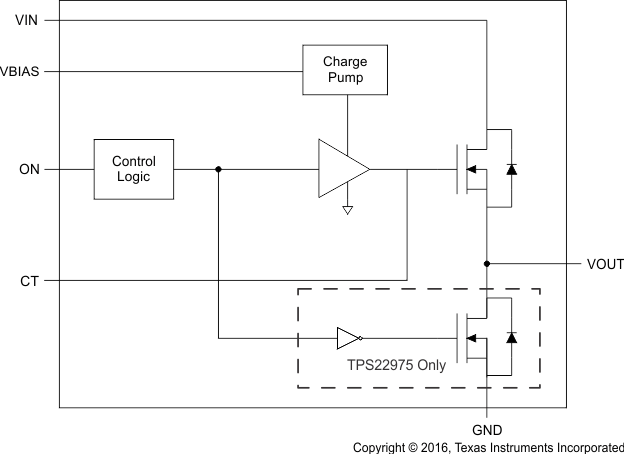

The TPS22975 product family consists of two devices: TPS22975 and TPS22975N. Each device is a single-channel load switch that provides a configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.6 V to 5.7 V and can support a maximum continuous current of 6 A. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. TPS22975 has an optional 230-Ω on-chip load resistor for quick output discharge when switch is turned off.

The TPS22975 is available in a small, space-saving 2-mm × 2-mm 8-pin SON package (DSG) with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of –40°C to +105°C.

The TPS22975 product family consists of two devices: TPS22975 and TPS22975N. Each device is a single-channel load switch that provides a configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.6 V to 5.7 V and can support a maximum continuous current of 6 A. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. TPS22975 has an optional 230-Ω on-chip load resistor for quick output discharge when switch is turned off.

The TPS22975 is available in a small, space-saving 2-mm × 2-mm 8-pin SON package (DSG) with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of –40°C to +105°C.
