TLV9354

ACTIVE

Quad, 40-V, 3.5-MHz, low-power operational amplifier

Texas Instruments TLV9354 Product Info

1 April 2026 3

Parameters

Number of channels	4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	40
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	4.5
Rail-to-rail	In to V-, Out
GBW (typ) (MHz)	3.5
Slew rate (typ) (V/µs)	20
Vos (offset voltage at 25°C) (max) (mV)	1.8
Iq per channel (typ) (mA)	0.65
Vn at 1 kHz (typ) (nV√Hz)	15
Rating	Catalog
Operating temperature range (°C)	-40 to 125
Offset drift (typ) (µV/°C)	1.5
Features	Cost Optimized, EMI Hardened, MUX Friendly, Small Size
CMRR (typ) (dB)	110
Iout (typ) (A)	0.06
Architecture	CMOS
Input common mode headroom (to negative supply) (typ) (V)	-0.1
Input common mode headroom (to positive supply) (typ) (V)	0.1
Output swing headroom (to negative supply) (typ) (V)	0.025
Output swing headroom (to positive supply) (typ) (V)	-0.025

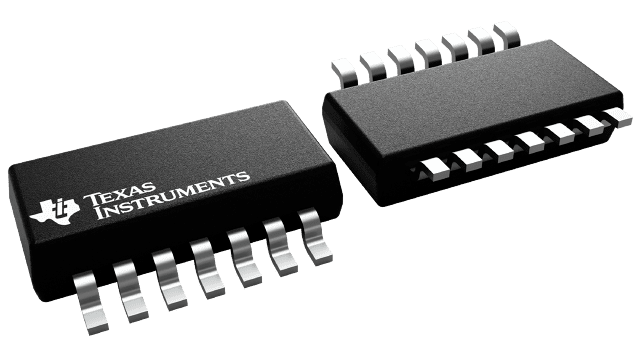

Package

SOIC (D)-14-51.9 mm² 8.65 x 6

Features

Low offset voltage: ±350 µV
Low offset voltage drift: ±1.5 µV/°C
Low noise: 15 nV/√Hz at 1 kHz
High common-mode rejection: 110 dB
Low bias current: ±10 pA
Rail-to-rail output
MUX-friendly/comparator inputs
- Amplifier operates with differential inputs up to supply rail
- Amplifier can be used in open-loop or as comparator
Wide bandwidth: 3.5-MHz GBW
High slew rate: 20 V/µs
Low quiescent current: 600 µA per amplifier
Wide supply: ±2.25 V to ±20 V, 4.5 V to 40 V
Robust EMIRR performance: EMI/RFI filters on input pins
Differential and common-mode input voltage range to supply rail

Low offset voltage: ±350 µV
Low offset voltage drift: ±1.5 µV/°C
Low noise: 15 nV/√Hz at 1 kHz
High common-mode rejection: 110 dB
Low bias current: ±10 pA
Rail-to-rail output
MUX-friendly/comparator inputs
- Amplifier operates with differential inputs up to supply rail
- Amplifier can be used in open-loop or as comparator
Wide bandwidth: 3.5-MHz GBW
High slew rate: 20 V/µs
Low quiescent current: 600 µA per amplifier
Wide supply: ±2.25 V to ±20 V, 4.5 V to 40 V
Robust EMIRR performance: EMI/RFI filters on input pins
Differential and common-mode input voltage range to supply rail

Description

The TLV935x family (TLV9351, TLV9352, and TLV9354) is a family of 40-V cost-optimized operational amplifiers.

These devices offer strong DC and AC specifications, including rail-to-rail output, low offset (±350 µV, typical), low offset drift (±1.5 µV/°C, typical), and 3.5-MHz bandwidth.

Unique features such as differential input-voltage range to the supply rail, high output current (±60 mA), and high slew rate (20 V/µs) make the TLV935x a robust operational amplifier for high-voltage, cost-sensitive applications.

The TLV935x family of op amps is available in standard packages and is specified from –40°C to 125°C.
