ACTIVE
Resolution (Bits) |
8 |
Sample rate (max) (ksps) |
500 |
Number of input channels |
1 |
Interface type |
Microwire (Serial I/O), SPI |
Architecture |
SAR |
Input type |
Single-ended |
Rating |
Catalog |
Reference mode |
Supply |
Input voltage range (max) (V) |
5.25 |
Input voltage range (min) (V) |
0 |
Features |
Small Size |
Operating temperature range (°C) |
-40 to 85 |
Power consumption (typ) (mW) |
1.6 |
Analog supply voltage (min) (V) |
2.7 |
Analog supply voltage (max) (V) |
5.25 |
SNR (dB) |
49.6 |
Digital supply (min) (V) |
2.7 |
Digital supply (max) (V) |
5.25 |
SOT-23 (DBV)-6-8.12 mm² 2.9 x 2.8

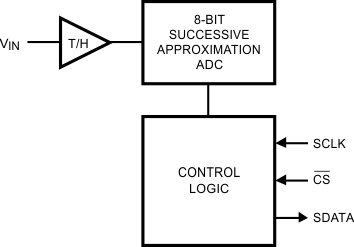

The ADC081S051 is a low-power, single channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC081S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit.

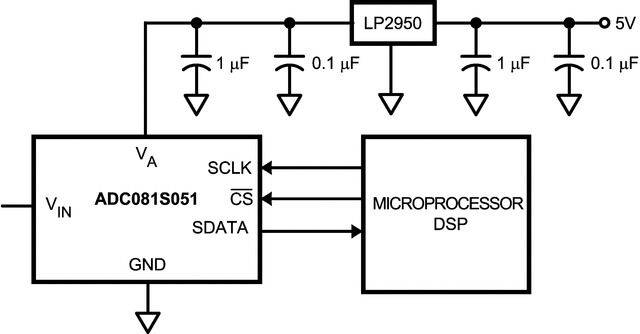

The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.
The ADC081S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3.6V or +5.25V supply is 1.6 mW and 8.5 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a +5.25V supply.

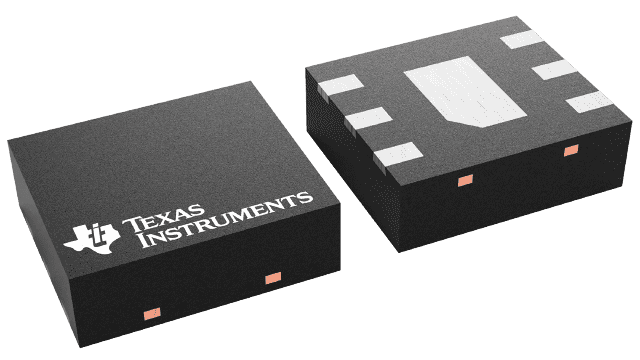

The ADC081S051 is packaged in 6-lead WSON and SOT-23 packages. Operation over the industrial temperature range of −40°C to +85°C is ensured.
