ACTIVE
Resolution (Bits) |
16 |
Number of input channels |
2 |
Interface type |
Serial |
Architecture |
Delta-Sigma Modulator |
Input type |
Differential, Single-ended |
Multichannel configuration |
Simultaneous Sampling |
Rating |
Catalog |
Reference mode |
External, Internal |
Input voltage range (max) (V) |
5 |
Input voltage range (min) (V) |
0 |
Features |
Oscillator |
Operating temperature range (°C) |
-40 to 85 |
Power consumption (typ) (mW) |
59 |
Analog supply voltage (min) (V) |
4.5 |
Analog supply voltage (max) (V) |
5.5 |
SNR (dB) |
88.9 |
Digital supply (min) (V) |
2.7 |
Digital supply (max) (V) |
5.5 |
VQFN (RGE)-24-16 mm² 4 x 4
All trademarks are the property of their respective owners.

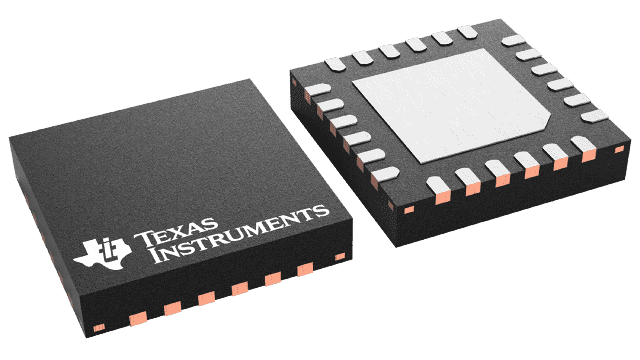

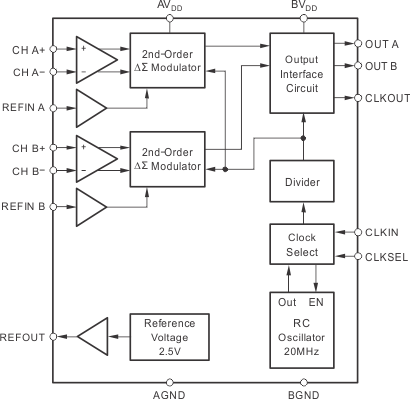

The ADS1205 is a two-channel, high-performance, delta-sigma (
) modulator with more than 98dB dynamic range, operating from a single +5V supply. The differential inputs are ideal for direct connection to transducers in an industrial environment. With the appropriate digital filter and modulator rate, the device can be used to achieve 16-bit analog-to-digital (A/D) conversion with no missing codes. Effective resolution of 14 bits can be obtained with a digital filter bandwidth of 40kHz at a modulator rate of 10MHz. The ADS1205 is designed for use in high-resolution measurement applications including current measurements, smart transmitters, industrial process control, and resolvers. It is available in a QFN-24 (4x4) package.
