ACTIVE
Sample rate (max) (Msps) |
105 |
Resolution (Bits) |
14 |
Number of input channels |
1 |
Interface type |
Parallel CMOS |
Analog input BW (MHz) |
750 |
Features |
High Performance |
Rating |
Catalog |
Peak-to-peak input voltage range (V) |
2.3 |
Power consumption (typ) (mW) |
710 |
Architecture |
Pipeline |
SNR (dB) |
73.6 |
ENOB (Bits) |
11.7 |
SFDR (dB) |
86 |
Operating temperature range (°C) |
-40 to 85 |
Input buffer |
No |
HTQFP (PAP)-64-144 mm² 12 x 12
PowerPAD is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.

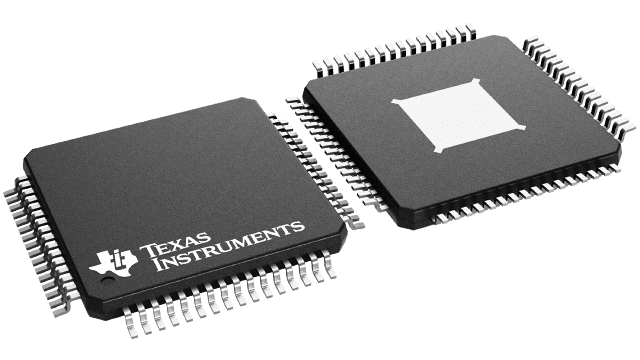

The ADS5541 is a high-performance, 14-bit, 105MSPS analog-to-digital converter (ADC). To provide a complete converter solution, it includes a high-bandwidth linear sample-and-hold stage (S&H) and internal reference. Designed for applications demanding the highest speed and highest dynamic performance in a small space, the ADS5541 has excellent analog power dissipation of 571mW at 3.3V single-supply voltage. This allows an even higher system integration density. The provided internal reference simplifies system design requirements. The parallel CMOS compatible outputs ensure seamless interfacing with common logic.
The ADS5541 is available in a TQFP-64 PowerPAD package over the industrial temperature range.
