ACTIVE
Number of receivers |
1 |
Number of transmitters |
1 |
Duplex |
Half |
Supply voltage (nom) (V) |
5 |
Signaling rate (max) (Mbps) |
0.25 |
IEC 61000-4-2 contact (±V) |
12000 |
Fault protection (V) |
-18 to 18 |
Common-mode range (V) |
-7 to 12 |
Number of nodes |
256 |
Features |
IEC ESD protection |
Isolated |
No |
Supply current (max) (µA) |
900 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
SOIC (D)-8-29.4 mm² 4.9 x 6

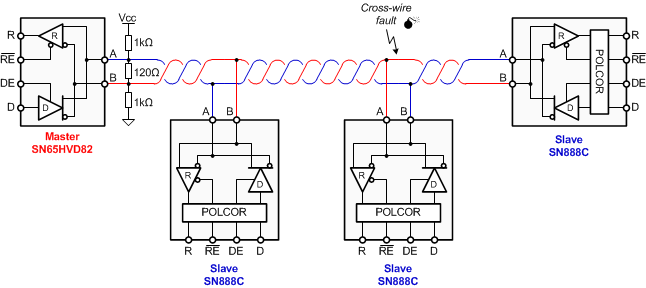

The SN888C is a low-power RS-485 transceiver with bus-polarity correction and transient protection. Upon hot plug-in the device detects and corrects the bus polarity within the first 76 ms of bus idling. On-chip transient protection protects the device against IEC61000 ESD and EFT transients.
The SN888C is available in an SOIC-8 package. The device is characterized from 40°C to 85°C.
