ACTIVE
Rating |
Automotive |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
1.4 |
Iout (max) (A) |
0.15 |
Output options |
Fixed Output |
Vout (max) (V) |
3.3 |
Vout (min) (V) |
1 |
Fixed output options (V) |
1, 1.2, 1.8, 2.5, 3.3 |
Noise (µVrms) |
73 |
PSRR at 100 KHz (dB) |
17 |
Iq (typ) (mA) |
0.05 |
Features |
Enable, Foldback Overcurrent protection |
Thermal resistance θJA (°C/W) |
249 |
Load capacitance (min) (µF) |
0 |
Regulated outputs (#) |
1 |
Accuracy (%) |
1.5 |
Dropout voltage (Vdo) (typ) (mV) |
230 |
Operating temperature range (°C) |
-40 to 125 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8
The TLV713P-Q1 series of low-dropout (LDO) linear regulators are low quiescent current LDOs with excellent line and load transient performance and are designed for power-sensitive applications. These devices provide a typical accuracy of 1%.

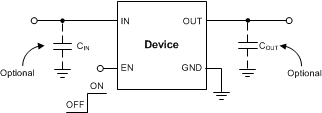

The TLV713P-Q1 series of devices is designed to be stable without an output capacitor. The removal of the output capacitor allows for a very small solution size. However, the TLV713P-Q1 series is also stable with any output capacitor if an output capacitor is used.
The TLV713P-Q1 also provides inrush current control during device power-up and enabling. The TLV713P-Q1 limits the input current to the defined current limit to avoid large currents from flowing from the input power source. This functionality is especially important in battery-operated devices.
The TLV713P-Q1 series is available in a standard DBV package and provides an active pulldown circuit to quickly discharge output loads. The TLV713P-Q1 is suited for automotive applications because the device is qualified for AEC-Q100 grade 1.
