ACTIVE
Configuration |
Serial-in, Parallel-out |
Bits (#) |
8 |
Technology family |
LV-A |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
5.5 |
Input type |
Standard CMOS |
Output type |
3-State |
Clock frequency (MHz) |
95 |
IOL (max) (mA) |
16 |
IOH (max) (mA) |
-16 |
Supply current (max) (µA) |
20 |
Features |
Balanced outputs, Output register, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Catalog |

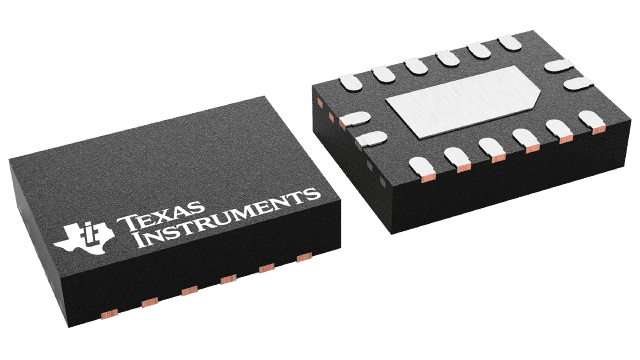

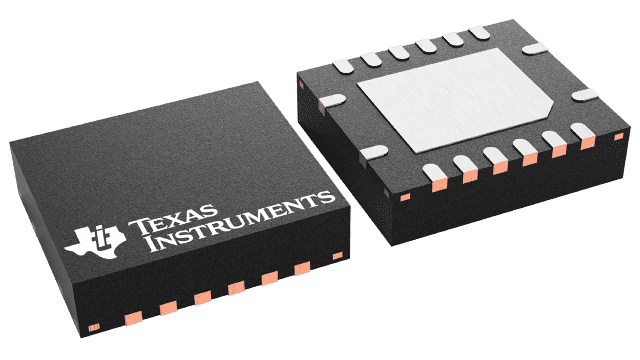

SOIC (D)-16-59.4 mm² 9.9 x 6

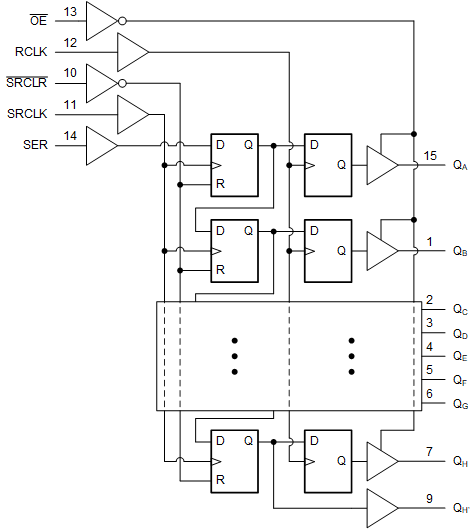

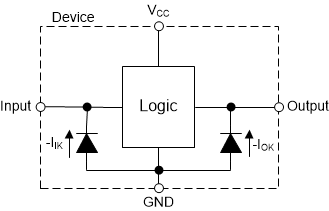

The SN74LV595A device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered.
