Texas Instruments SN74HCS594 Product Info

Parameters

Configuration	Serial-in, Parallel-out
Bits (#)	8
Technology family	HCS
Supply voltage (min) (V)	2
Supply voltage (max) (V)	6
Input type	Schmitt-Trigger
Output type	Push-Pull
Clock frequency (MHz)	68
IOL (max) (mA)	7.8
IOH (max) (mA)	-7.8
Supply current (max) (µA)	2
Features	Balanced outputs, High speed (tpd 10-50ns), Output register, Positive input clamp diode
Operating temperature range (°C)	-40 to 125
Rating	Catalog

Package

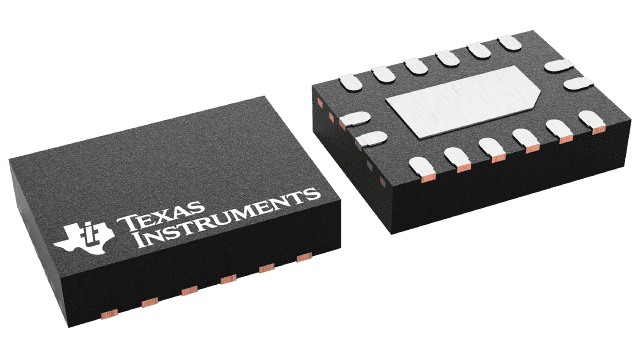

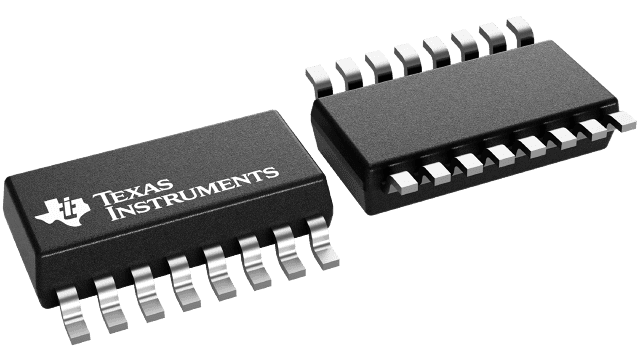

SOIC (D)-16-59.4 mm² 9.9 x 6

Features

Wide operating voltage range: 2 V to 6 V

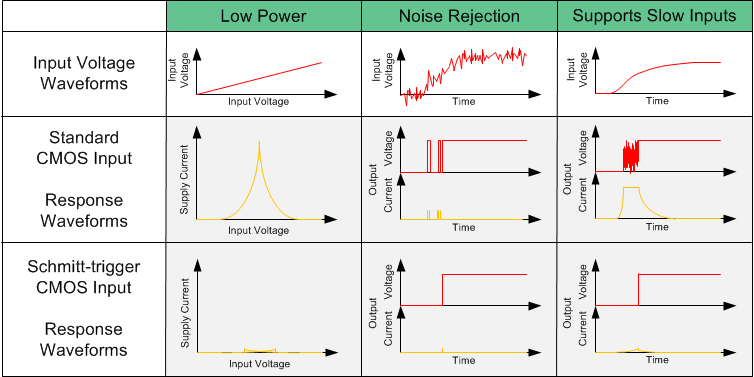

Schmitt-trigger inputs allow for slow or noisy input signals
Low power consumption
- Typical I_CC of 100 nA
- Typical input leakage current of ±100 nA
±7.8-mA output drive at 6 V
Extended ambient temperature range: –40°C to +125°C, T_A

Wide operating voltage range: 2 V to 6 V
Schmitt-trigger inputs allow for slow or noisy input signals
Low power consumption
- Typical I_CC of 100 nA
- Typical input leakage current of ±100 nA
±7.8-mA output drive at 6 V
Extended ambient temperature range: –40°C to +125°C, T_A

Description

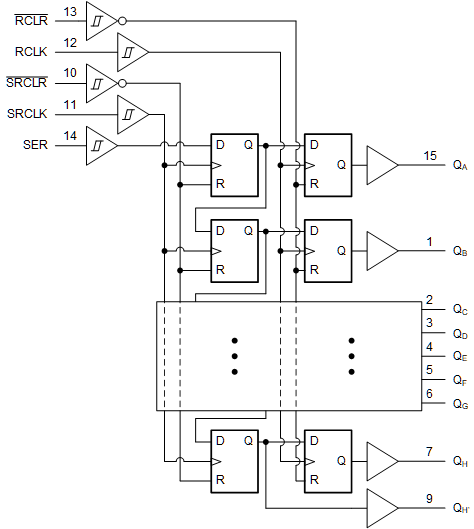

The SN74HCS594 device contains an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. All inputs include Schmitt triggers, eliminating any erroneous data outputs due to slow-edged or noisy input signals. The storage register has parallel outputs. Separate clocks and direct overriding clear (SRCLR, RCLR) inputs are provided for both the shift and storage register. A serial output (Q_H) is provided for cascading.

Both the shift register (SRCLK) and storage register (RCLK) clocks are positive edge triggered. If both clocks are connected together, the shift register is one count pulse ahead of the storage register.

The SN74HCS594 device contains an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. All inputs include Schmitt triggers, eliminating any erroneous data outputs due to slow-edged or noisy input signals. The storage register has parallel outputs. Separate clocks and direct overriding clear (SRCLR, RCLR) inputs are provided for both the shift and storage register. A serial output (Q_H) is provided for cascading.

Both the shift register (SRCLK) and storage register (RCLK) clocks are positive edge triggered. If both clocks are connected together, the shift register is one count pulse ahead of the storage register.
