Texas Instruments TPS1211-Q1 Product Info

Parameters

Operating voltage (max) (V)	45
Operating voltage (min) (V)	3.5
Features	Adjustable current limit, Automotive load dump compatibility, Current monitoring, Precharge FET driver, Short circuit protection
Reverse polarity protection (V)	-30
Quiescent current (Iq) (µA)	613
IGate sink (typ) (A)	4
IGate source (typ) (A)	3.7
Current sense accuracy	+/-2% at 30-mV VSNS
Operating temperature range (°C)	-40 to 125
Rating	Automotive

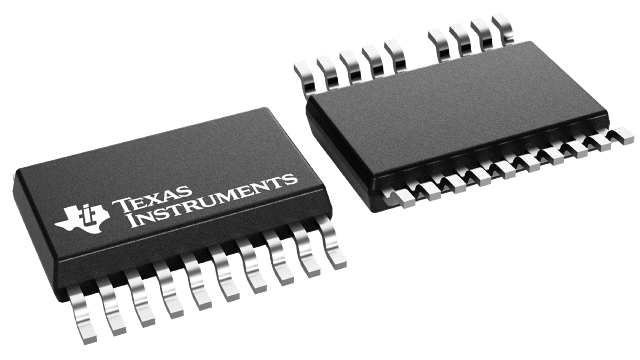

Package

VSSOP (DGX)-19-15.3 mm² 5.1 x 3

Features

AEC-Q100 qualified with the following results
- Device temperature grade 1: –40°C to +125°C ambient operating temperature range
Functional Safety-Capable
- Documentation available to aid functional safety system design
3.5V to 40V input range (45V absolute maximum)
Output reverse polarity protection down to –30V
Integrated 12V charge pump with 100µA capacity
Low 0.9µA shutdown current (EN/UVLO = Low)
Strong pullup (3.7A) and pulldown (4A) gate driver
Drives external back-to-back N-channel MOSFETs
Variant with integrated pre-charge switch driver (TPS12111-Q1) to drive capacitive loads
Two-level adjustable overcurrent protection (IWRN, ISCP) with adjustable response time (TMR) and fault flag output (FLT_I)
Fast short-circuit protection: 1.2µs (TPS12111-Q1, TPS12112-Q1), 4µs (TPS12110-Q1)
Accurate analog current monitor output (IMON): ±2% at 30mV (VSNS)
Accurate, adjustable undervoltage lockout (UVLO) and overvoltage protection (OV): < ±2%
Remote overtemperature sensing (DIODE) and protection with fault flag output (FLT_T)
Pin-to-pin compatible with TPS4811-Q1

AEC-Q100 qualified with the following results
- Device temperature grade 1: –40°C to +125°C ambient operating temperature range
Functional Safety-Capable
- Documentation available to aid functional safety system design
3.5V to 40V input range (45V absolute maximum)
Output reverse polarity protection down to –30V
Integrated 12V charge pump with 100µA capacity
Low 0.9µA shutdown current (EN/UVLO = Low)
Strong pullup (3.7A) and pulldown (4A) gate driver
Drives external back-to-back N-channel MOSFETs
Variant with integrated pre-charge switch driver (TPS12111-Q1) to drive capacitive loads
Two-level adjustable overcurrent protection (IWRN, ISCP) with adjustable response time (TMR) and fault flag output (FLT_I)
Fast short-circuit protection: 1.2µs (TPS12111-Q1, TPS12112-Q1), 4µs (TPS12110-Q1)
Accurate analog current monitor output (IMON): ±2% at 30mV (VSNS)
Accurate, adjustable undervoltage lockout (UVLO) and overvoltage protection (OV): < ±2%
Remote overtemperature sensing (DIODE) and protection with fault flag output (FLT_T)
Pin-to-pin compatible with TPS4811-Q1

Description

The TPS1211-Q1 family is a 45V, smart high-side driver with protection and diagnostics. With wide operating voltage range of 3.5V–40V, the device is suitable for 12V system designs.

The device has a strong 3.7A peak source (PU) and 4A peak sink (PD) gate driver that enables power switching using parallel FETs in high-current system designs. Use INP as the gate driver control input.

The device has accurate current sensing (±2% at 30mV) output (IMON) enabling system designs for energy management. The device has integrated two-level overcurrent protection with FLT_I output with complete adjustability of thresholds and response time. Auto-retry and latch-off fault behavior can be configured. The device features remote overtemperature protection with FLT_T output.

The TPS12111-Q1 integrates a pre-charge driver (G) with control input (INP_G). This features enables designs that must drive large capacitive loads. In shutdown mode (EN/UVLO < 0.3V), the controller draws a total shutdown current of 0.9µA (typical).

The TPS1211-Q1 is available in a 19-pin VSSOP package with a pin removed between adjacent high voltage and low voltage pins, providing 0.8mm clearance.

The TPS1211-Q1 family is a 45V, smart high-side driver with protection and diagnostics. With wide operating voltage range of 3.5V–40V, the device is suitable for 12V system designs.

The device has a strong 3.7A peak source (PU) and 4A peak sink (PD) gate driver that enables power switching using parallel FETs in high-current system designs. Use INP as the gate driver control input.

The device has accurate current sensing (±2% at 30mV) output (IMON) enabling system designs for energy management. The device has integrated two-level overcurrent protection with FLT_I output with complete adjustability of thresholds and response time. Auto-retry and latch-off fault behavior can be configured. The device features remote overtemperature protection with FLT_T output.

The TPS12111-Q1 integrates a pre-charge driver (G) with control input (INP_G). This features enables designs that must drive large capacitive loads. In shutdown mode (EN/UVLO < 0.3V), the controller draws a total shutdown current of 0.9µA (typical).

The TPS1211-Q1 is available in a 19-pin VSSOP package with a pin removed between adjacent high voltage and low voltage pins, providing 0.8mm clearance.
