ACTIVE
VDS (V) |
20 |
VGS (V) |
20 |
Type |
N-channel |
Configuration |
Single |
Rds(on) at VGS=10 V (max) (mΩ) |
15 |
Rds(on) at VGS=4.5 V (max) (mΩ) |
19.2 |
VGSTH typ (typ) (V) |
1.45 |
QG (typ) (nC) |
2.5 |
QGD (typ) (nC) |
0.66 |
QGS (typ) (nC) |
0.93 |
ID - silicon limited at TC=25°C (A) |
10 |
ID - package limited (A) |
22 |
Logic level |
Yes |
Rating |
Catalog |
Operating temperature range (°C) |
-55 to 150 |

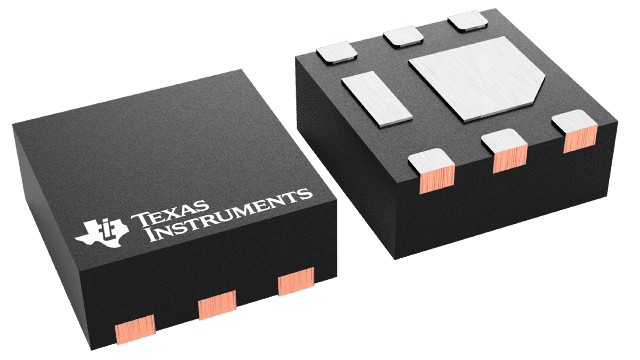

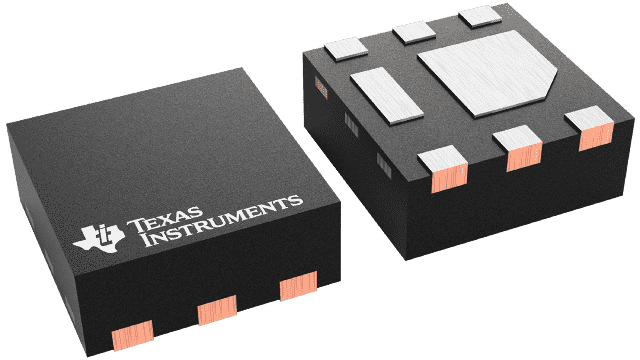

WSON (DQK)-6-4 mm² 2 x 2
The NexFET power MOSFET has been designed to minimize losses in power conversion and load management applications. The SON 2x2 offers excellent thermal performance for the size of the package.
