Texas Instruments SN74HC377 Product Info

Parameters

Number of channels	8
Technology family	HC
Supply voltage (min) (V)	2
Supply voltage (max) (V)	6
Input type	Standard CMOS
Output type	Push-Pull
Clock frequency (max) (MHz)	28
IOL (max) (mA)	5.2
IOH (max) (mA)	-5.2
Supply current (max) (µA)	80
Features	Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode
Operating temperature range (°C)	-40 to 85
Rating	Catalog

Package

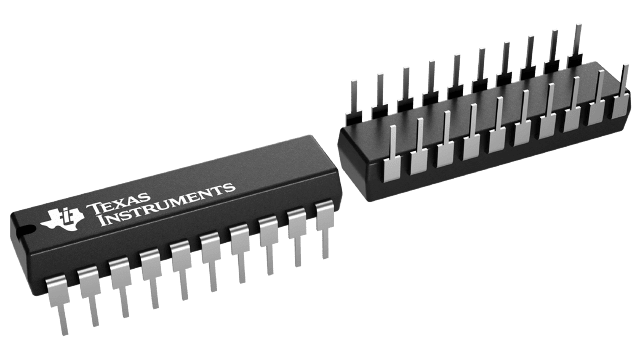

PDIP (N)-20-228.702 mm² 24.33 x 9.4

Features

Wide operating voltage range of 2 V to 6 V
Outputs can drive up to 10 LSTTL loads
Low power consumption, 80-µA max I_CC
Typical t_pd = 12 ns
±4-mA output drive at 5 V
Low input current of 1 µA max
Eight flip-flops with single-rail outputs
Clock enable latched to avoid false clocking

Wide operating voltage range of 2 V to 6 V
Outputs can drive up to 10 LSTTL loads
Low power consumption, 80-µA max I_CC
Typical t_pd = 12 ns
±4-mA output drive at 5 V
Low input current of 1 µA max
Eight flip-flops with single-rail outputs
Clock enable latched to avoid false clocking

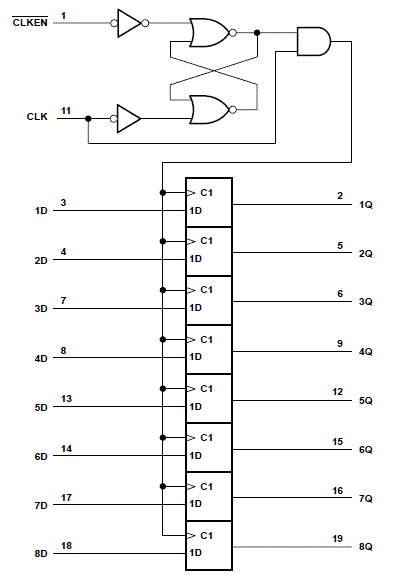

Description

These devices are positive-edge-triggered octal D-type flip-flops with an enable input. The ’HC377 devices are similar to the ’HC273 devices, but feature a latched clock-enable (CLKEN) input instead of a common clear.
