0
ACTIVE
Rating |
Automotive |
Topology |
Buck |
Iout (max) (A) |
2 |
Vin (max) (V) |
36 |
Vin (min) (V) |
3.8 |
Vout (max) (V) |
34 |
Vout (min) (V) |
1 |
Features |
Enable, Light Load Efficiency, Over Current Protection, Power good, Soft Start Fixed, Synchronous Rectification, Wettable flanks package |
EMI features |
Low parasitic Hotrod packaging |
Control mode |
current mode |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (A) |
0.000024 |
Duty cycle (max) (%) |
98 |
TI functional safety category |
Functional Safety-Capable |

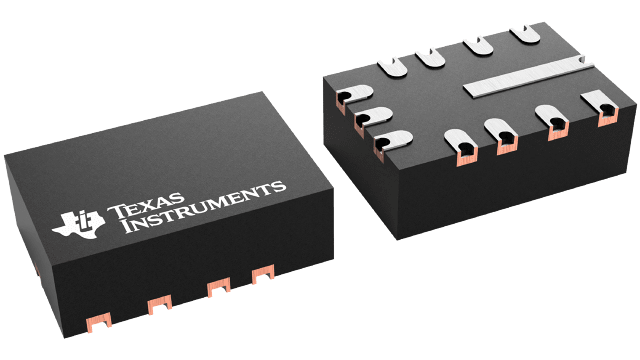

VQFN-HR (RNX)-12-6 mm² 3 x 2

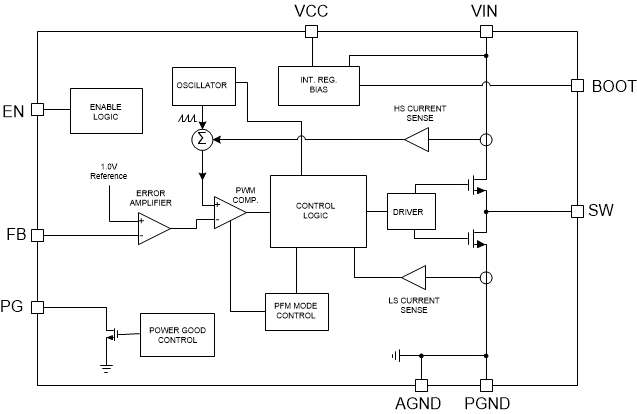

The LMR336x0AP-Q1 automotive-qualified regulator is an easy-to-use, synchronous, step-down DC/DC converter that delivers best-in-class efficiency for rugged applications. The LMR336x0AP-Q1 drives up to 2 A or 3 A of load current from an input of up to 36 V. The LMR336x0AP-Q1 provides high light load efficiency and output accuracy in a very small solution size. Features such as a power-good flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. The LMR336x0AP-Q1 automatically folds back frequency at light load to improve efficiency. Integration eliminates most external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LMR336x0AP-Q1 is available in a 12-pin 3-mm × 2-mm next generation VQFN package with wettable flanks.
