ACTIVE
Bits (#) |
2 |
Data rate (max) (Mbps) |
380 |
Topology |
Push-Pull |
Direction control (typ) |
Direction-controlled |
Vin (min) (V) |
0.65 |
Vin (max) (V) |
3.6 |
Vout (min) (V) |
0.65 |
Vout (max) (V) |
3.6 |
Applications |
UART |
Features |
Overvoltage tolerant inputs, Partial power down (Ioff), Vcc isolation |
Prop delay (ns) |
4 |
Technology family |
AXC |
Supply current (max) (mA) |
0.023 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
SSOP (DCT)-8-11.8 mm² 2.95 x 4

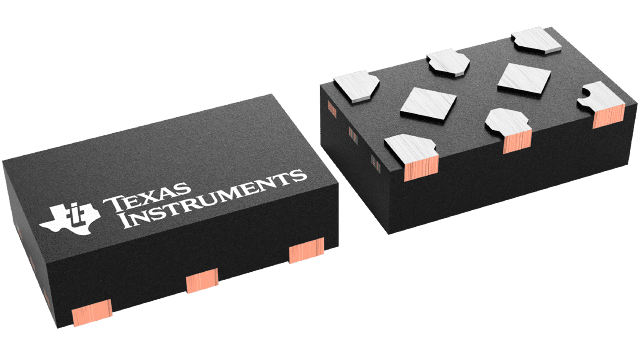

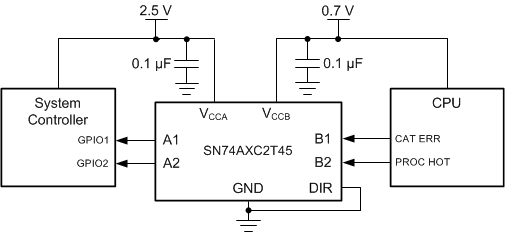

The SN74AXC2T45 is a two-bit noninverting bus transceiver that uses two individually configurable power-supply rails. The device is operational with both VCCA and VCCB supplies as low as 0.65V. The A port is designed to track VCCA, which accepts any supply voltage from 0.65V to 3.6V. The B port is designed to track VCCB, which also accepts any supply voltage from 0.65V to 3.6V. Additionally the SN74AXC2T45 is compatible with a single-supply system.
The SN74AXC2T45 device is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level of the direction-control input (DIR). The SN74AXC2T45 device is designed so the control pin (DIR) is referenced to VCCA.
This device is fully specified for partial-power-down applications using the Ioff current. The Ioff protection circuitry is designed so that no excessive current is drawn from or to an input, output, or combined I/O that is biased to a specific voltage while the device is powered down.
The VCC isolation feature is designed so that if either VCCA or VCCB is less than 100mV, both I/O ports enter a high-impedance state by disabling their outputs.
Glitch-free power supply sequencing allows either supply rail to be powered on or off in any order while providing robust power sequencing performance.
