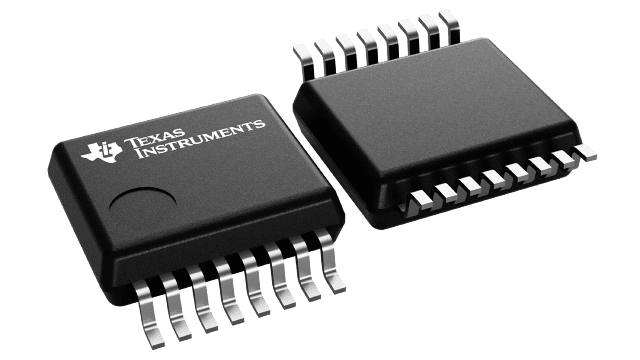

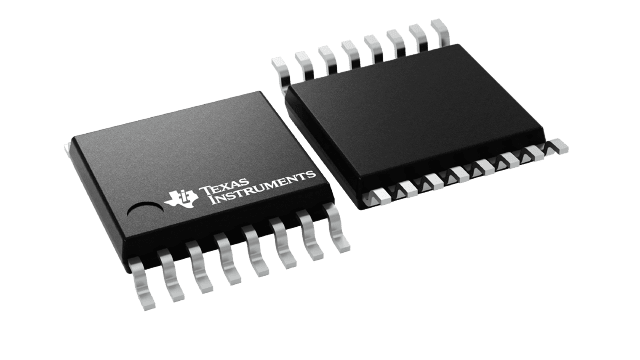

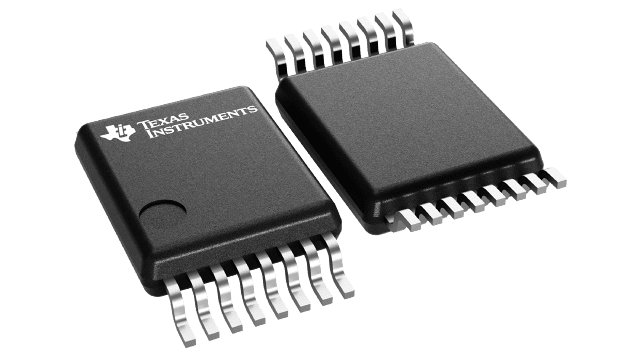

SN74AHCT367
  • SN74AHCT367
  • SN74AHCT367
  • SN74AHCT367
  • SN74AHCT367

SN74AHCT367

ACTIVE

6-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs

Texas Instruments SN74AHCT367 Product Info

1 April 2026 0

Parameters

Technology family

AHCT

Supply voltage (min) (V)

4.5

Supply voltage (max) (V)

5.5

Number of channels

6

IOL (max) (mA)

8

Supply current (max) (µA)

40

IOH (max) (mA)

-8

Input type

TTL-Compatible CMOS

Output type

Push-Pull

Features

Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns)

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

SOIC (D)-16-59.4 mm² 9.9 x 6

Features

  • Inputs are TTL-voltage compatible
  • True outputs
  • Latch-up performance exceeds 100mA per JESD 78, class II
  • ESD protection exceeds JESD 22
    • 2000V human-body model
    • 2000V charged-device model
  • Inputs are TTL-voltage compatible
  • True outputs
  • Latch-up performance exceeds 100mA per JESD 78, class II
  • ESD protection exceeds JESD 22
    • 2000V human-body model
    • 2000V charged-device model

Description

The SN74AHCT367 device is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

The SN74AHCT367 device is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
