ACTIVE
Vin (max) (V) |
5.5 |
Vin (min) (V) |
1.5 |
FET |
Integrated single FET |
Device type |
Ideal diode controller |
Number of channels |
1 |
Rating |
Automotive |
Features |
Enable, Gate ON/OFF control, Power good signal, Reverse current blocking, Reverse polarity protection |
Imax (A) |
1.5 |
Iq (typ) (mA) |
0.00015 |
Iq (max) (mA) |
0.0003 |
Operating temperature range (°C) |
-40 to 125 |
VSense reverse (typ) (mV) |
46 |
Design support |
EVM |
Shutdown current (ISD) (mA) (A) |
0.00012 |
Product type |
Ideal diode controller |
SOT-SC70 (DCK)-6-4.2 mm² 2 x 2.1

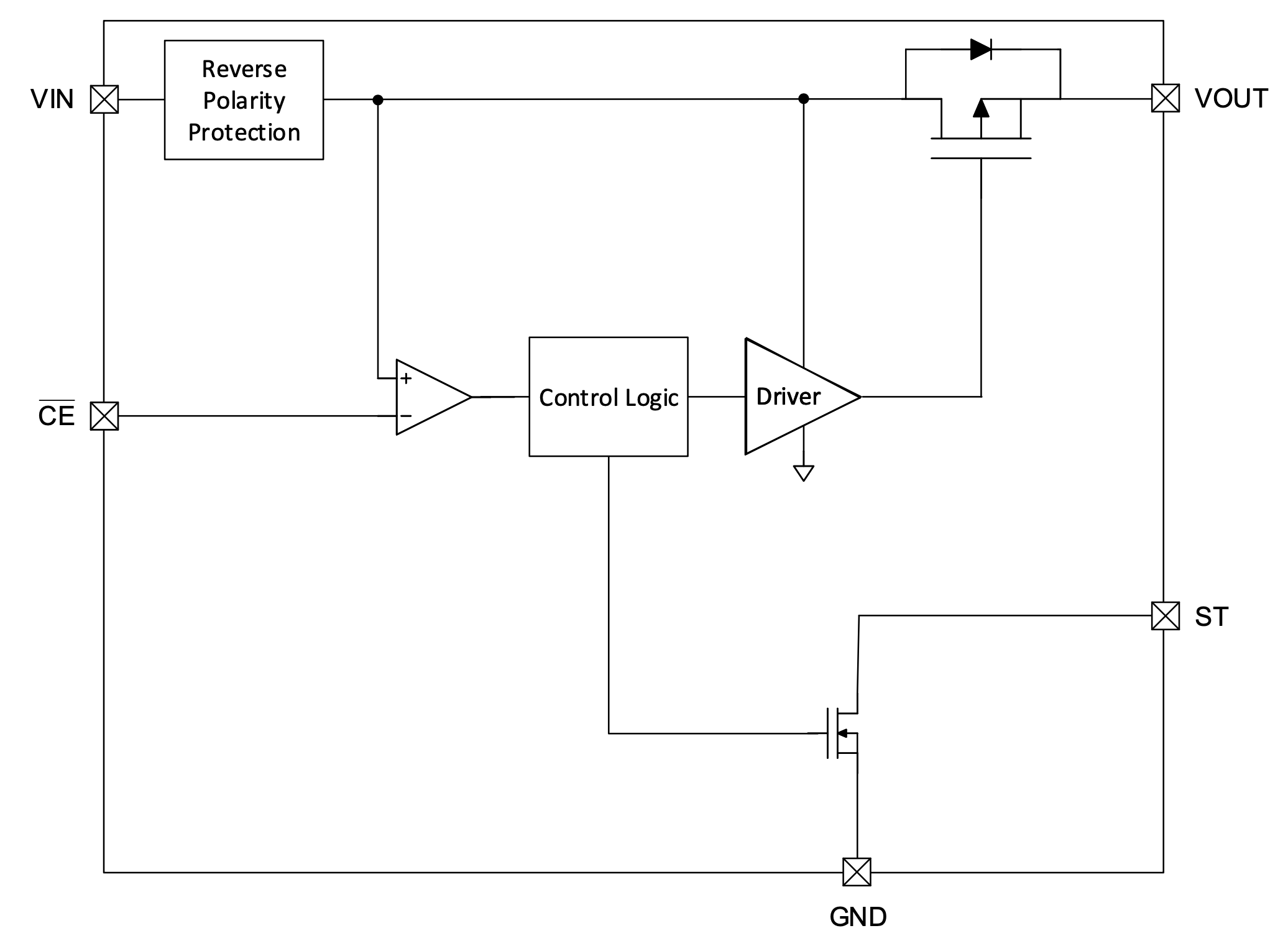

The LM66100-Q1 is a Single-Input, Single-Output (SISO) integrated ideal diode that is well suited for a variety of applications. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.5 V to 5.5 V and can support a maximum continuous current of 1.5 A.
The chip enable works by comparing the CE pin voltage to the input voltage. When the CE pin voltage is higher than VIN, the device disables and the MOSFET is off. When the CE pin voltage is lower, the MOSFET is on. The LM66100-Q1 also comes with reverse polarity protection (RPP) that can protect the device from a miswired input, such as a reversed battery.

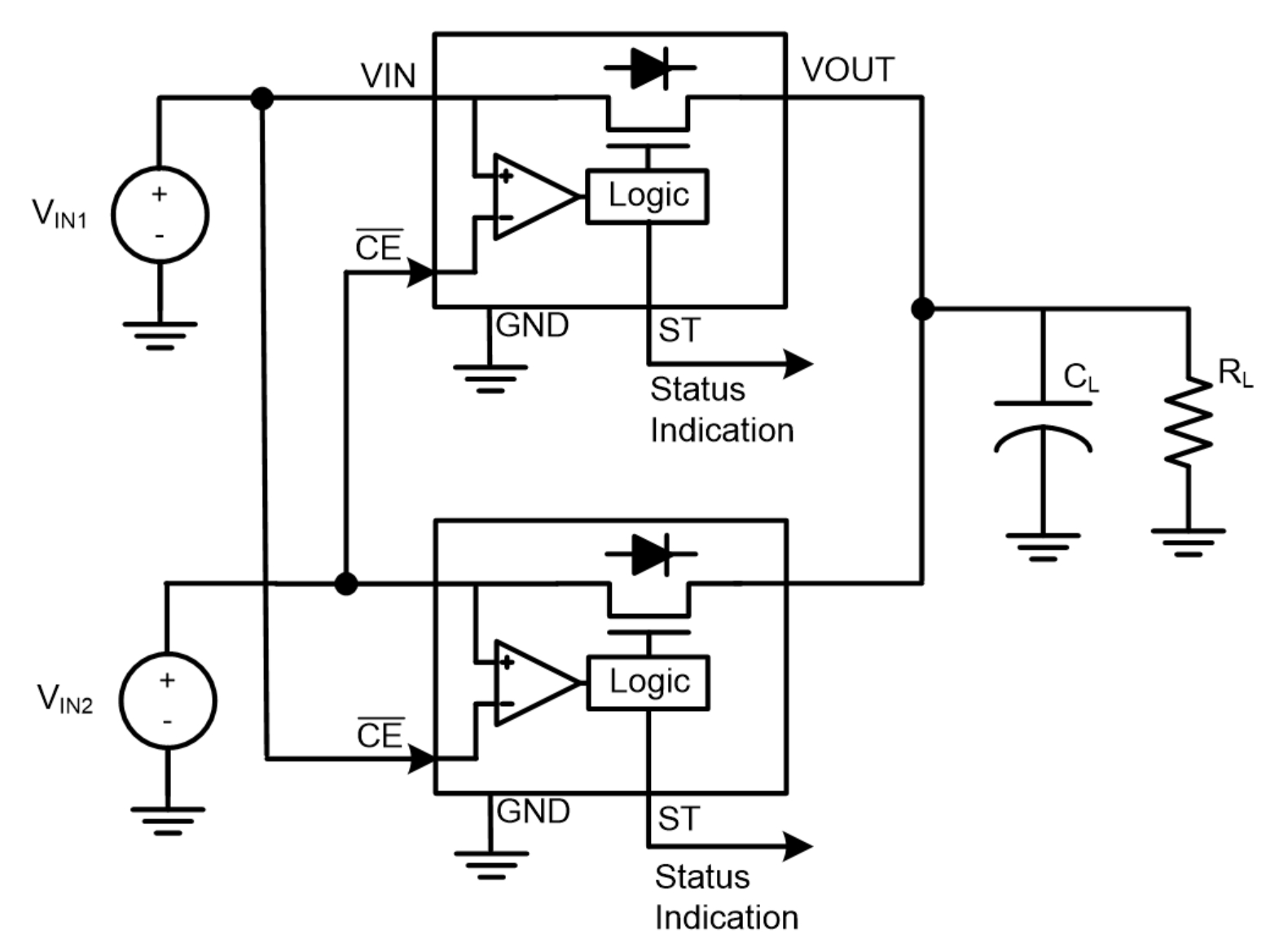

Two LM66100-Q1 devices can be used in an ORing configuration similar to a dual diode ORing implementation. In this configuration, the devices pass the highest input voltage to the output while blocking reverse current flow into the input supplies. These devices can compare input and output voltages to make sure that reverse current is blocked through an internal voltage comparator.
The LM66100-Q1 is available in a standard SC-70 package characterized for operation over a junction temperature range of –40°C to 150°C.
