Texas Instruments TLC69668-Q1 Product Info

Parameters

Number of channels	16
Topology	Current Sink
Rating	Automotive
Operating temperature range (°C)	-40 to 125
Vin (min) (V)	3
Vin (max) (V)	5.5
Features	Hybrid Dimming/Phase Shift, LED Open Detection, LED Short Detection, Local dimming, Serial interface

Package

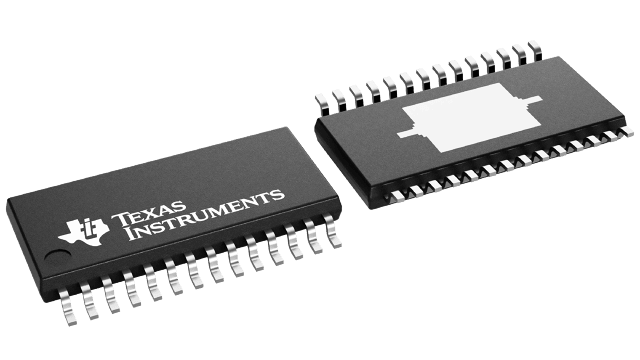

HTSSOP (PWP)-28-62.08 mm² 9.7 x 6.4

Features

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: –40°C to +125°C, TA
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
Functional Safety-Capable:
- Documentation available to aid functional safety system design
Operating voltage VCC range: 3V to 5.5V
16 constant current sinks with high precision:
- Maximum output current / voltage:
  - 30mA / 20V: TLC69602/4/8-Q1
  - 60mA / 20V: TLC69612/4/8-Q1
  - 30mA / 50V: TLC69652/4/8-Q1
  - 60mA / 50V: TLC69662/4/8-Q1
- Device-to-device error: ±2% (typ.)
- Channel-to-channel error: ±2% (typ.)
Flexible dimming control:
- Global 8-bit Maximum Current (MC) setting
- Brightness resolution: up to 15-bit
- PWM / Hybrid control mode
High speed daisy chain interface:
- I/O voltage compatible with: 1.8V / 3.3V
- Data transfer rate: up to 20MHz
High system efficiency:
- Adaptive headroom voltage control (AHVC)
- Ultra-low device power consumption:
  - Standby mode: ICC ≤ 200µA
  - Normal mode: ICC ≤ 3.5mA
EMI enhancement:
- Programmable interface driving capability
- Integrated 4 phase-shifting schemes
Diagnostics:
- LED open / short detection for each zone
- Device thermal shutdown detection
- Report interface option:
  - UART and interrupt pin (INT)
  - Two-wire output: CLK_O and SOUT

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: –40°C to +125°C, TA
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
Functional Safety-Capable:
- Documentation available to aid functional safety system design
Operating voltage VCC range: 3V to 5.5V
16 constant current sinks with high precision:
- Maximum output current / voltage:
  - 30mA / 20V: TLC69602/4/8-Q1
  - 60mA / 20V: TLC69612/4/8-Q1
  - 30mA / 50V: TLC69652/4/8-Q1
  - 60mA / 50V: TLC69662/4/8-Q1
- Device-to-device error: ±2% (typ.)
- Channel-to-channel error: ±2% (typ.)
Flexible dimming control:
- Global 8-bit Maximum Current (MC) setting
- Brightness resolution: up to 15-bit
- PWM / Hybrid control mode
High speed daisy chain interface:
- I/O voltage compatible with: 1.8V / 3.3V
- Data transfer rate: up to 20MHz
High system efficiency:
- Adaptive headroom voltage control (AHVC)
- Ultra-low device power consumption:
  - Standby mode: ICC ≤ 200µA
  - Normal mode: ICC ≤ 3.5mA
EMI enhancement:
- Programmable interface driving capability
- Integrated 4 phase-shifting schemes
Diagnostics:
- LED open / short detection for each zone
- Device thermal shutdown detection
- Report interface option:
  - UART and interrupt pin (INT)
  - Two-wire output: CLK_O and SOUT

Description

The TLC696x8-Q1 is a family of LCD local dimming backlight driver compatible with TLC696x0-Q1 which is a scan MOSFET controller to achieve 2/4/8 time-multiplexing control. Each device integrates 16 constant current sinks with corresponding size of SRAM for brightness storage. The device connects to each other by two-wire serial interface in daisy chain topology and supports up to 1024 devices for more than 32,000 local dimming zones.

To optimize system efficiency, the device is equipped with adaptive headroom voltage control scheme to directly control DC/DC. Only the FB pin from last device in serial chain should be connected to DC/DC to achieve simplified system layout. The device also integrates minimum brightness update latency, black insertion and VRR features to improve display quality.

TLC696x2/4/8-Q1 has three error flags: LED open detection (LOD), LED short detection (LSD) and thermal shutdown detection (TSD) for diagnostic. The device implements two options for readback including UART/INT and SOUT/CLK_O which is programmable by register.
