0
ACTIVE
Number of channels |
6 |
Technology family |
AHCT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Input type |
TTL-Compatible CMOS |
Output type |
Push-Pull |
Clock frequency (max) (MHz) |
70 |
IOL (max) (mA) |
8 |
IOH (max) (mA) |
-8 |
Supply current (max) (µA) |
40 |
Features |
Balanced outputs, Very high speed (tpd 5-10ns) |
Operating temperature range (°C) |
-40 to 85 |
Rating |
Catalog |

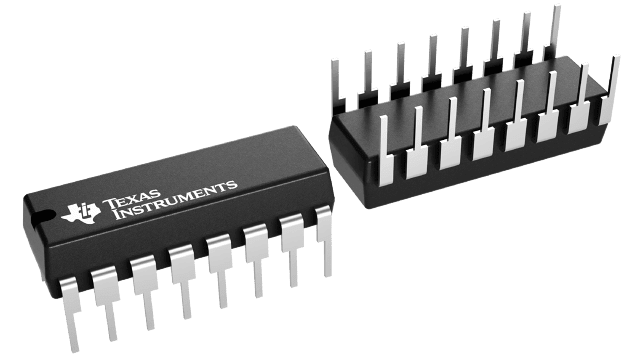

PDIP (N)-16-181.42 mm² 19.3 x 9.4

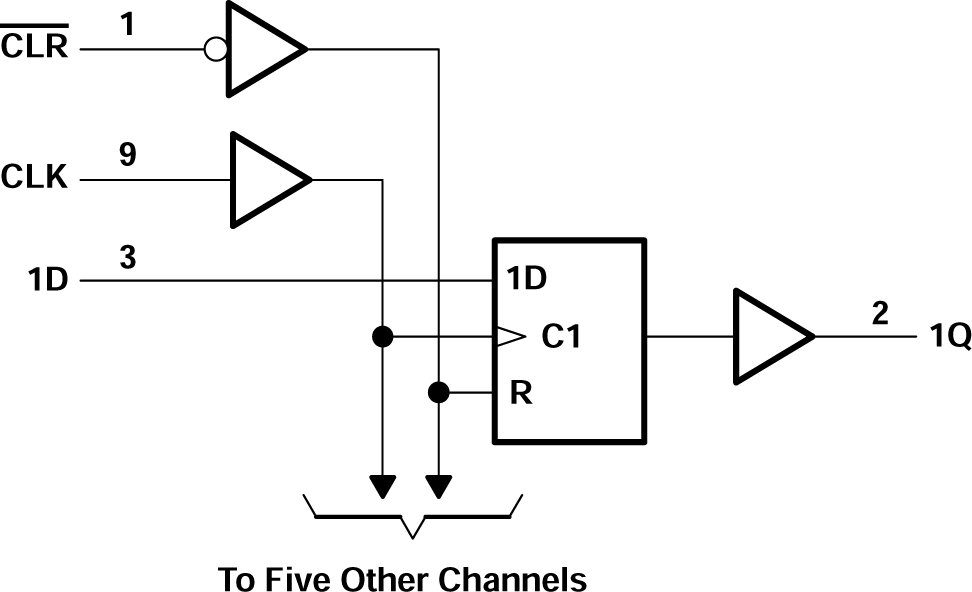

These positive-edge-triggered D-type flip-flops have a direct clear (CLR) input.
