SN74AHC1G14
  • SN74AHC1G14
  • SN74AHC1G14
  • SN74AHC1G14
  • SN74AHC1G14

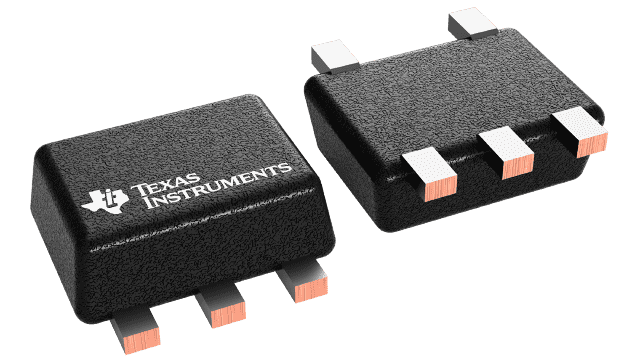

SN74AHC1G14

ACTIVE

Single 2-V to 5.5-V inverter with Schmitt-Trigger inputs

Texas Instruments SN74AHC1G14 Product Info

1 April 2026 0

Parameters

Technology family

AHC

Supply voltage (min) (V)

2

Supply voltage (max) (V)

5.5

Number of channels

1

IOL (max) (mA)

8

IOH (max) (mA)

-8

Supply current (max) (µA)

10

Input type

Schmitt-Trigger

Output type

Push-Pull

Features

Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns)

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

  • Operating range 2 V to 5.5 V
  • Maximum tpd of 10 ns at 5 V
  • Low power consumption, 10-µA max ICC
  • ±8-mA output drive at 5 V
  • Latch-up performance exceeds 250 mA per JESD 17
  • Operating range 2 V to 5.5 V
  • Maximum tpd of 10 ns at 5 V
  • Low power consumption, 10-µA max ICC
  • ±8-mA output drive at 5 V
  • Latch-up performance exceeds 250 mA per JESD 17

Description

The SN74AHC1G14 device is a single inverter gate. The device performs the Boolean function Y = A.

The SN74AHC1G14 device is a single inverter gate. The device performs the Boolean function Y = A.
