TPS50301-HT
  • TPS50301-HT
  • TPS50301-HT

TPS50301-HT

ACTIVE

1.6-V to 6.3-V INPUT, 3-A SYNCHRONOUS STEP DOWN CONVERTER

Texas Instruments TPS50301-HT Product Info

1 April 2026 4

Parameters

Rating

High Temp

Topology

Buck

Iout (max) (A)

3

Vin (max) (V)

6.3

Vin (min) (V)

3

Vout (max) (V)

5.5

Vout (min) (V)

0.785

Features

Enable, Frequency synchronization, Power good, Tracking

Control mode

current mode

Operating temperature range (°C)

-55 to 210

Iq (typ) (A)

0.005

Duty cycle (max) (%)

85

Package

CFP (HKH)-20-93.726 mm² 12.7 x 7.38

Features

  • Peak Efficiency: 95% (VO = 3.3 V)
  • Integrated 55-mΩ/50-mΩ MOSFETs
  • Split Power Rail: 1.6 to 6.3 V on PVIN
  • Power Rail: 3 to 6.3 V on VIN
  • 3 A
  • Flexible Switching Frequency Options:
    • 100-kHz to 1-MHz Adjustable Internal Oscillator
    • External Sync Capability: 100 kHz to 1 MHz
    • SYNC Pin can be Configured as a 500-kHz Output for Master/Slave Applications
  • 0.795-V ±1.258% Voltage Reference at 25°C
  • Monotonic Start-Up into Prebiased Outputs
  • Adjustable Slow Start and Power Sequencing
  • Power Good Output Monitor for Undervoltage and Overvoltage
  • Adjustable Input Undervoltage Lockout (UVLO)

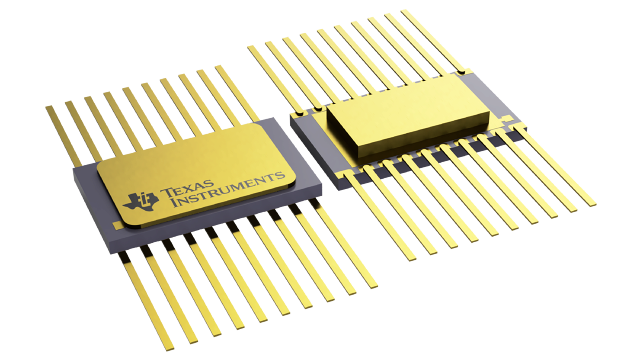

  • 20-Pin Thermally-Enhanced Ceramic Flatpack Package (HKH)
  • See the Tools & Software Tab
  • Create a custom design using the TPS50301-HT with the WEBENCH® Power Designer
  • Peak Efficiency: 95% (VO = 3.3 V)
  • Integrated 55-mΩ/50-mΩ MOSFETs
  • Split Power Rail: 1.6 to 6.3 V on PVIN
  • Power Rail: 3 to 6.3 V on VIN
  • 3 A
  • Flexible Switching Frequency Options:
    • 100-kHz to 1-MHz Adjustable Internal Oscillator
    • External Sync Capability: 100 kHz to 1 MHz
    • SYNC Pin can be Configured as a 500-kHz Output for Master/Slave Applications
  • 0.795-V ±1.258% Voltage Reference at 25°C
  • Monotonic Start-Up into Prebiased Outputs
  • Adjustable Slow Start and Power Sequencing
  • Power Good Output Monitor for Undervoltage and Overvoltage
  • Adjustable Input Undervoltage Lockout (UVLO)
  • 20-Pin Thermally-Enhanced Ceramic Flatpack Package (HKH)
  • See the Tools & Software Tab
  • Create a custom design using the TPS50301-HT with the WEBENCH® Power Designer

Description

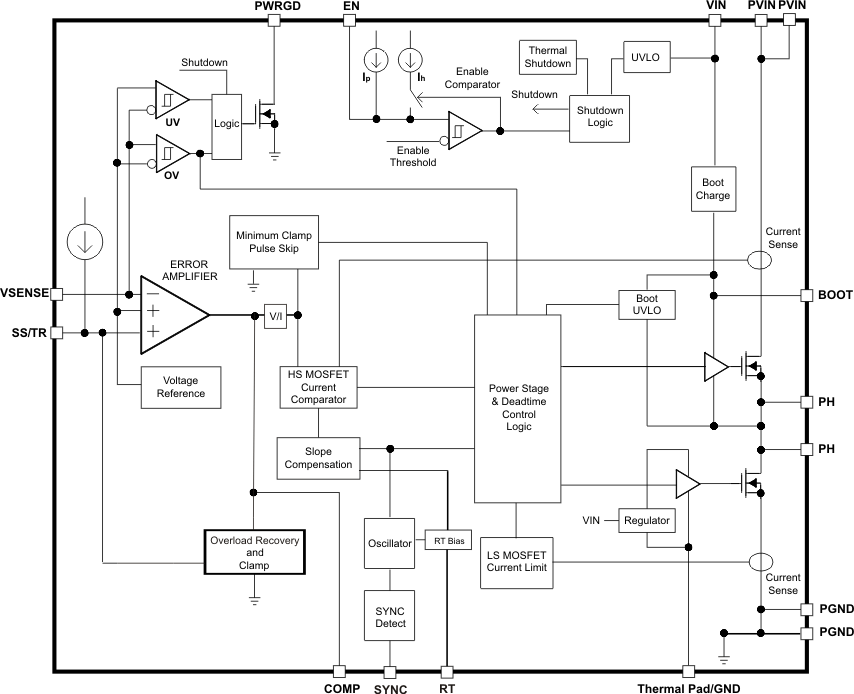

The TPS50301-HT is a 6.3-V, 3-A synchronous step-down converter, which is optimized for small designs through high efficiency and integrating the high-side and low-side MOSFETs. Further space savings are achieved through current mode control, which reduces component count, and a high switching frequency, reducing the inductor’s footprint. The devices are offered in a thermally enhanced 20-pin ceramic, dual in-line flatpack package.

The output voltage start-up ramp is controlled by the SS/TR pin which allows operation as either a standalone power supply or in tracking situations. Power sequencing is also possible by correctly configuring the enable and the open drain power good pins.

Cycle-by-cycle current limiting on the high-side FET protects the device in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit which turns off the low-side MOSFET to prevent excessive reverse current. Thermal shutdown disables the part when die temperature exceeds thermal shutdown temperature.
