0
ACTIVE
Rating |
Catalog |
Vin (max) (V) |
6.5 |
Vin (min) (V) |
2.2 |
Iout (max) (A) |
1 |
Output options |
Adjustable Output |
Vout (max) (V) |
6 |
Vout (min) (V) |
0.8 |
Noise (µVrms) |
23 |
PSRR at 100 KHz (dB) |
60 |
Iq (typ) (mA) |
0.06 |
Features |
Enable |
Thermal resistance θJA (°C/W) |
48 |
Load capacitance (min) (µF) |
4.7 |
Regulated outputs (#) |
1 |
Accuracy (%) |
3 |
Dropout voltage (Vdo) (typ) (mV) |
170 |
Operating temperature range (°C) |
-40 to 125 |
VSON (DRB)-8-9 mm² 3 x 3

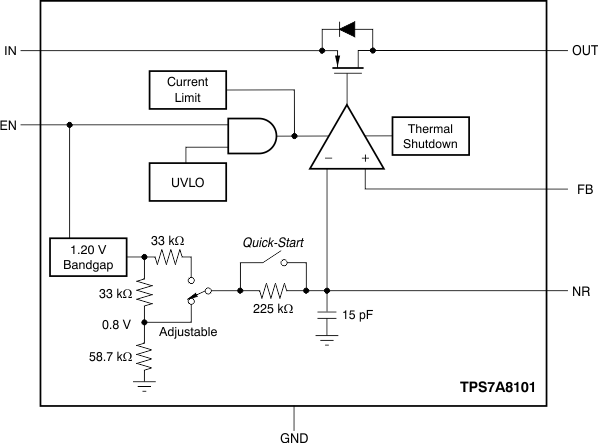

The TPS7A8101 low-dropout linear regulator (LDO) offers very good performance in noise and power-supply rejection ratio (PSRR) at the output. This LDO uses an advanced BiCMOS process and a PMOSFET pass device to achieve very low noise, excellent transient response, and excellent PSRR performance.
The TPS7A8101 device is stable with a 4.7-µF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations.
This device is fully specified over the temperature range of TJ = 40°C to 125deg;C and is offered in a 3-mm × 3-mm, SON-8 package with a thermal pad.
