ACTIVE
Technology family |
AHC |
Function |
Digital Multiplexer |
Configuration |
2:1 |
Number of channels |
4 |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Automotive |

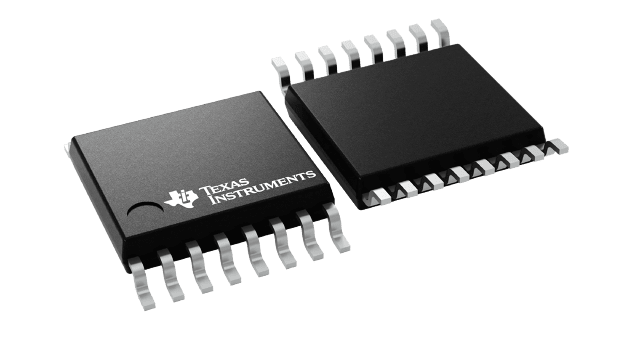

TSSOP (PW)-16-32 mm² 5 x 6.4

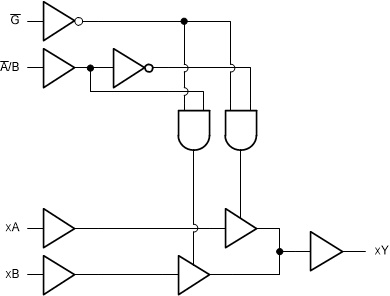

The SN74AHC157-Q1 is a quadruple 2-line to 1-line data selectors/multiplexers are designed for 2-V to 5.5-V VCC operation. The SN74AHC157-Q1 devices feature a common strobe (G) input. When the strobe is high, all outputs are low. When the strobe is low, a 4-bit word is selected from one of two sources and is routed to the four outputs. The device provides true data.
