TLV3502-Q1
  • TLV3502-Q1
  • TLV3502-Q1

TLV3502-Q1

ACTIVE

Automotive-grade, high-speed, dual rail-to-rail comparator with shutdown function

Texas Instruments TLV3502-Q1 Product Info

1 April 2026 4

Parameters

Number of channels

2

Output type

Push-Pull

Propagation delay time (µs)

0.0045

Vs (max) (V)

5.5

Vs (min) (V)

2.7

Rating

Automotive

Features

Hysteresis

Iq per channel (typ) (mA)

3.2

Vos (offset voltage at 25°C) (max) (mV)

6.5

Rail-to-rail

In

Operating temperature range (°C)

-40 to 125

Input bias current (±) (max) (nA)

0.01

VICR (max) (V)

5.7

VICR (min) (V)

-0.2

Package

SOT-23 (DCN)-8-4.64 mm² 2.9 x 1.6

Features

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results:
    • Device Temperature Grade 1: –40°C to +125°C
      Ambient Operating Temperature Range
    • Device HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C4B
  • High Speed: 4.5 ns
  • Rail-To-Rail I/O
  • Supply Voltage: 2.7 V To 5.5 V
  • Push-Pull CMOS Output Stage
  • Shutdown

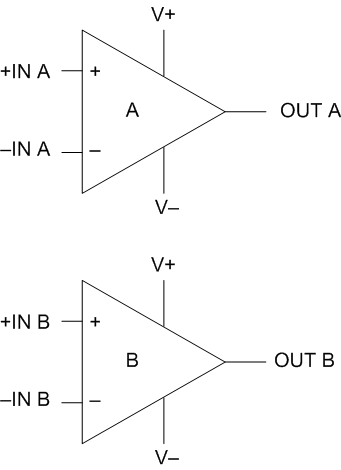

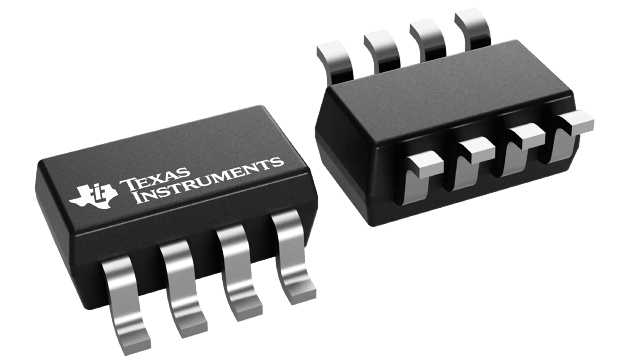

  • Micro Package: SOT23-8
  • Low Supply Current: 3.2 mA
  • APPLICATIONS
    • HEV/EV, Powertrain, and Passive Safety:
      • Threshold Detector
      • Zero-Crossing Detector
      • Window Comparator
      • Oscillator

All other trademarks are the property of their respective owners

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results:
    • Device Temperature Grade 1: –40°C to +125°C
      Ambient Operating Temperature Range
    • Device HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C4B
  • High Speed: 4.5 ns
  • Rail-To-Rail I/O
  • Supply Voltage: 2.7 V To 5.5 V
  • Push-Pull CMOS Output Stage
  • Shutdown
  • Micro Package: SOT23-8
  • Low Supply Current: 3.2 mA
  • APPLICATIONS
    • HEV/EV, Powertrain, and Passive Safety:
      • Threshold Detector
      • Zero-Crossing Detector
      • Window Comparator
      • Oscillator

All other trademarks are the property of their respective owners

Description

The TLV3502-Q1 push-pull output comparators feature a fast 4.5-ns propagation delay and operation from 2.7 V to 5.5 V. Beyond-the-rails input common-mode range makes the device an ideal choice for low-voltage applications. The rail-to-rail output directly drives either CMOS or TTL logic.

A microsize package provides options for portable and space-restricted applications. The TLV3502-Q1 device is available in the SOT23-8 (DCN) package.
