ACTIVE
Number of channels |
1 |
Vs (max) (V) |
5.5 |
Vs (min) (V) |
1.8 |
Input offset (±) (max) (µV) |
25 |
Voltage gain (min) (V/V) |
1 |
Voltage gain (max) (V/V) |
1000 |
Noise at 1 kHz (typ) (nV√Hz) |
50 |
Features |
Low power, Zero Drift |
CMRR (min) (dB) |
80 |
Input offset drift (±) (max) (µV/°C) |
0.1 |
Input bias current (±) (max) (nA) |
0.2 |
Iq (typ) (mA) |
0.198 |
Bandwidth at min gain (typ) (MHz) |
0.15 |
Gain error (±) (max) (%) |
0.5 |
Operating temperature range (°C) |
-55 to 210 |
Rating |
High Temp |
Type |
Resistor |
Gain nonlinearity (±) (max) (%) |
0.001 |
Output swing headroom (to negative supply) (typ) (V) |
0.05 |
Output swing headroom (to positive supply) (typ) (V) |
-0.05 |
Input common mode headroom (to negative supply) (typ) (V) |
0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
-0.1 |
Noise at 0.1 Hz to 10 Hz (typ) (µVPP) |
2 |

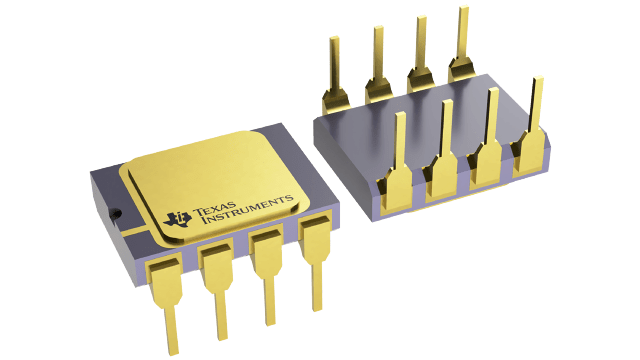

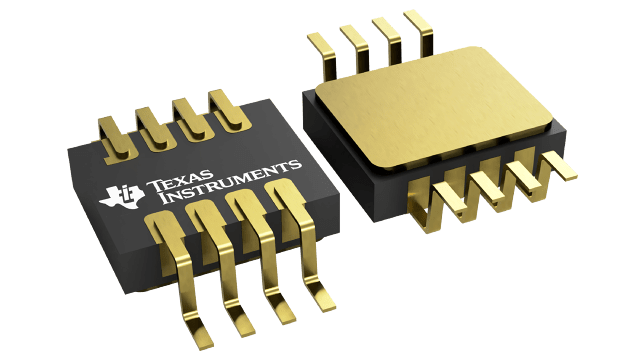

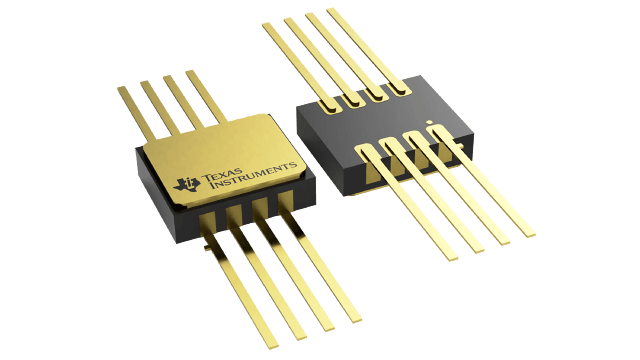

B0QFN (JD)-8-75.8373 mm² 10.29 x 7.37
The INA333 is a low-power, precision instrumentation amplifier offering excellent accuracy. The versatile 3-op amp design, small size, and low power make it ideal for a wide range of portable applications.
A single external resistor sets any gain from 1 to 1000. The INA333 is designed to use an industry-standard gain equation: G = 1 + (100kΩ/RG).
The INA333 provides very low offset voltage (25 µV at 25°C, G ≥ 100), excellent offset voltage drift (0.2 µV/°C, G ≥ 100), and high common-mode rejection (100 dB at 25°C, G ≥ 10). It operates with power supplies as low as 1.8 V (±0.9V), and quiescent current is only 50 µA—ideal for battery-operated systems. Using autocalibration techniques to ensure excellent precision over the extended industrial temperature range, the INA333 also offers exceptionally low noise density (55 nV/√Hz) that extends down to dc.
The INA333 is is specified over the TA = –55°C to +210°C temperature range.
