ACTIVE
Technology family |
AC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Number of channels |
4 |
Inputs per channel |
2 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Input type |
Standard CMOS |
Output type |
Push-Pull |
Features |
Very high speed (tpd 5-10ns) |
Data rate (max) (Mbps) |
100 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
SOIC (D)-14-51.9 mm² 8.65 x 6

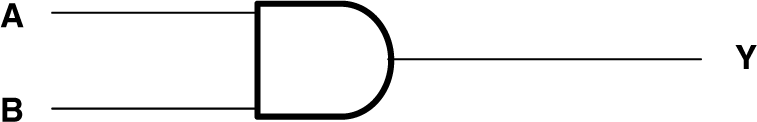

The SN74AC08 device is a quadruple 2-input positive-AND gate. This device performs the Boolean function Y = A • B or Y = A + B in positive logic.
