Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.8 |
Vos (offset voltage at 25°C) (max) (mV) |
0.09 |
Offset drift (typ) (µV/°C) |
0.05 |
GBW (typ) (MHz) |
0.3 |
Features |
EMI Hardened, Zero Drift |
Slew rate (typ) (V/µs) |
0.15 |
Rail-to-rail |
In, Out |
Iq per channel (typ) (mA) |
0.021 |
Vn at 1 kHz (typ) (nV√Hz) |
55 |
CMRR (typ) (dB) |
108 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
TI functional safety category |
Functional Safety-Capable |
Iout (typ) (A) |
0.005 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
0.1 |
Output swing headroom (to negative supply) (typ) (V) |
0.03 |
Output swing headroom (to positive supply) (typ) (V) |
-0.03 |
VSSOP (DGK)-8-14.7 mm² 3 x 4.9

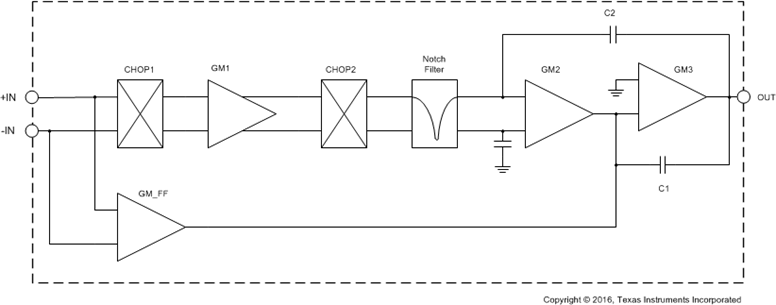

The OPA317-Q1 series of CMOS operational amplifiers offer precision performance at a very competitive price. These devices are members of the Zerø-Drift family of amplifiers that use a proprietary autocalibration technique to simultaneously provide low offset voltage (90 µV maximum) and near-zero drift over time and temperature at only 35 µA (maximum) of quiescent current.
The OPA317-Q1 family features rail-to-rail input and output in addition to near flat 1/f noise, making this amplifier ideal for many applications, and much easier to design into a system. These devices are optimized for low-voltage operation as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V).
The OPA317-Q1 (single version) is available in the SOT23-5 package. The OPA2317-Q1 (dual version) is offered in the VSSOP-8 package. The OPA4317-Q1 is offered in the TSSOP-14 package. All versions are specified for operation from –40°C to +125°C.
