ACTIVE
Product type |
Analog output |
Common-mode voltage (max) (V) |
120 |
Common-mode voltage (min) (V) |
2.7 |
Input offset (±) (max) (µV) |
12, 15, 20, 25 |
Input offset drift (±) (typ) (µV/°C) |
0.2 |
Features |
Ultra precise |
Rating |
Automotive |
Voltage gain (V/V) |
20, 50, 100, 200, 500 |
CMRR (min) (dB) |
140 |
Bandwidth (kHz) |
800, 850, 900, 1100 |
Supply voltage (max) (V) |
20 |
Supply voltage (min) (V) |
2.7 |
Iq (max) (mA) |
0.6 |
Number of channels |
1 |
Comparators (#) |
0 |
Gain error (%) |
0.1, 0.15 |
Gain error drift (±) (max) (ppm/°C) |
5 |
Slew rate (V/µs) |
2 |
TI functional safety category |
Functional Safety-Capable |
Operating temperature range (°C) |
-40 to 125 |
SOT-SC70 (DCK)-5-4.2 mm² 2 x 2.1

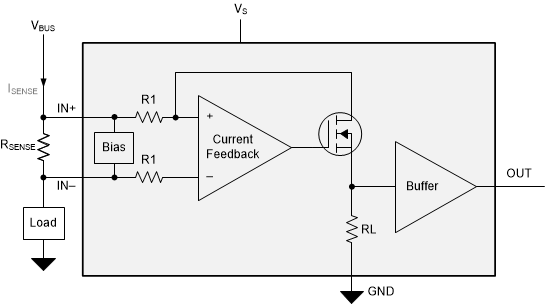

The INA290-Q1 is an ultra-precise current sense amplifier that can measure voltage drops across shunt resistors over a wide common-mode range from 2.7 V to 120 V. It is in a highly space-efficient SC-70 package with a PCB footprint of only 2.0 mm × 2.1 mm. The ultra-precise current measurement accuracy is achieved thanks to the combination of an ultra-low offset voltage of ±12 µV (maximum), a small gain error of ±0.1% (maximum), and a high DC CMRR of 160 dB (typical). The INA290-Q1 is not only designed for DC current measurement, but also for high-speed applications (like fast overcurrent protection, for example) with a high bandwidth of 1.1 MHz (at gain of 20 V/V) and an 85-dB AC CMRR (at 50 kHz).
The INA290-Q1 provides the capability to make ultra- precise current measurements by sensing the voltage drop across a shunt resistor over a wide common- mode range from 2.7 V to 120 V. The INA290-Q1 is available in the SC-70 package minimizing solution size area.
