LP8720
  • LP8720
  • LP8720

LP8720

ACTIVE

One Step-Down DC/DC and Five Linear Regulators with I2C Compatible Interface Key Specifications Key Specifications Linux Mainline Status Linux Source Files

Texas Instruments LP8720 Product Info

1 April 2026 0

Parameters

Regulated outputs (#)

6

Step-down DC/DC converter

1

Step-up DC/DC converter

0

LDO

5

Vin (min) (V)

2.7

Vin (max) (V)

4.5

Vout (min) (V)

0.8

Vout (max) (V)

3.3

Iout (max) (A)

0.4

Configurability

Software configurable

Features

Dynamic voltage scaling, I2C control

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Step-down DC/DC controller

0

Step-up DC/DC controller

0

Iq (typ) (mA)

0.7

Switching frequency (max) (kHz)

2300

Shutdown current (ISD) (typ) (µA)

0.7

Switching frequency (typ) (kHz)

2000

Package

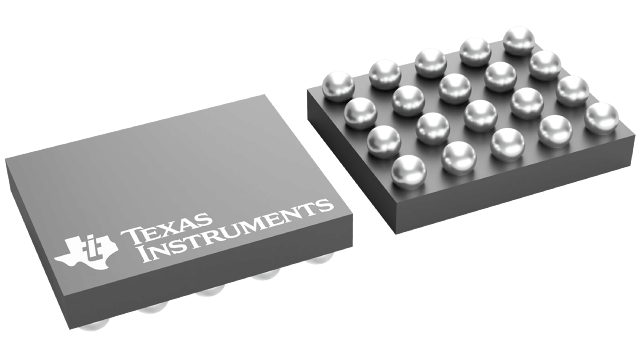

DSBGA (YZR)-20-6.1875 mm² 2.75 x 2.25

Features

  • 5 Low Noise LDO’s for up to 300 mA
  • One High-Efficiency Synchronous Magnetic Buck Regulator, IOUT 400 mA
    • High Efficiency PFM Mode @Low IOUT
    • Auto Mode PFM/PWM Switch
    • Low Inductance 2.2 µH @ 2 MHz Clock
    • Dynamic Voltage Scale Control
  • I2C-Compatible Interface for the Controlling of Internal Registers
  • 20-Bump 2.5 x 2.0 mm DSBGA Package

Key Specifications

  • Programmable Vout from 0.8V to 2.3V on DC-DC
  • Automatic Soft Start on DC-DC
  • 200 mV Typ Dropout Voltage at 300 mA on LDO’s
  • 2% (Typ) Output Voltage Accuracy on LDO’s

All trademarks are the property of their respective owners.

  • 5 Low Noise LDO’s for up to 300 mA
  • One High-Efficiency Synchronous Magnetic Buck Regulator, IOUT 400 mA
    • High Efficiency PFM Mode @Low IOUT
    • Auto Mode PFM/PWM Switch
    • Low Inductance 2.2 µH @ 2 MHz Clock
    • Dynamic Voltage Scale Control
  • I2C-Compatible Interface for the Controlling of Internal Registers
  • 20-Bump 2.5 x 2.0 mm DSBGA Package

Key Specifications

  • Programmable Vout from 0.8V to 2.3V on DC-DC
  • Automatic Soft Start on DC-DC
  • 200 mV Typ Dropout Voltage at 300 mA on LDO’s
  • 2% (Typ) Output Voltage Accuracy on LDO’s

All trademarks are the property of their respective owners.

Description

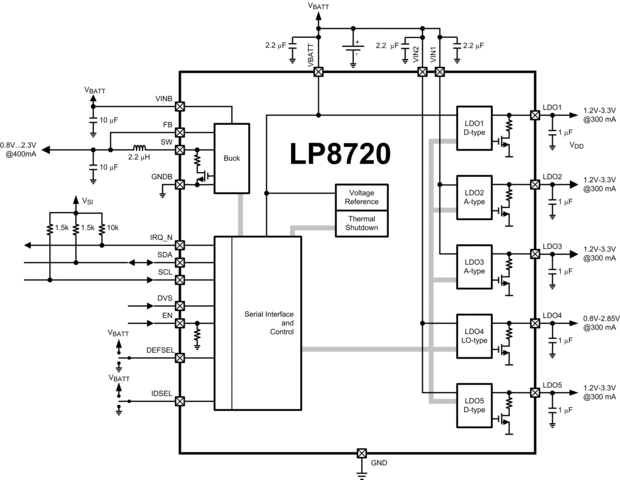

The LP8720 is a multi-function, programmable Power Management Unit, optimized for sub block power requirement solution. This device integrates one highly efficient 400 mA step-down DC-DC converter with Dynamic Voltage Scale (DVS), five low noise low dropout (LDO) voltage regulators and a 400 KHz I2C-compatible interface to allow a host controller access to the internal control registers of the LP8720. The LP8720 additionally features programmable power-on sequencing.

LDO regulators provide high PSRR and low noise ideally suited for supplying power to both analog and digital loads. The package will be the smallest 2.5 mm x 2.0 mm DSBGA 20-bump package.

The LP8720 is a multi-function, programmable Power Management Unit, optimized for sub block power requirement solution. This device integrates one highly efficient 400 mA step-down DC-DC converter with Dynamic Voltage Scale (DVS), five low noise low dropout (LDO) voltage regulators and a 400 KHz I2C-compatible interface to allow a host controller access to the internal control registers of the LP8720. The LP8720 additionally features programmable power-on sequencing.

LDO regulators provide high PSRR and low noise ideally suited for supplying power to both analog and digital loads. The package will be the smallest 2.5 mm x 2.0 mm DSBGA 20-bump package.
