ACTIVE
Rating |
Automotive |
Vin (max) (V) |
10 |
Vin (min) (V) |
2.7 |
Iout (max) (A) |
0.5 |
Output options |
Adjustable Output |
Vout (max) (V) |
9 |
Vout (min) (V) |
1.25 |
Noise (µVrms) |
80 |
PSRR at 100 KHz (dB) |
42 |
Iq (typ) (mA) |
0.055 |
Features |
Foldback Overcurrent protection |
Thermal resistance θJA (°C/W) |
51 |
Load capacitance (min) (µF) |
1 |
Regulated outputs (#) |
1 |
Accuracy (%) |
4 |
Dropout voltage (Vdo) (typ) (mV) |
250 |
Operating temperature range (°C) |
-40 to 125 |

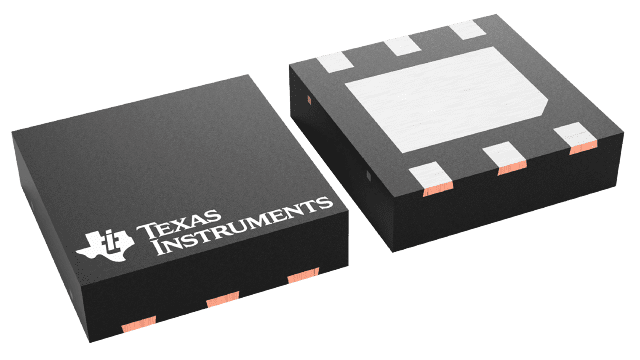

WSON (NGG)-6-9 mm² 3 x 3

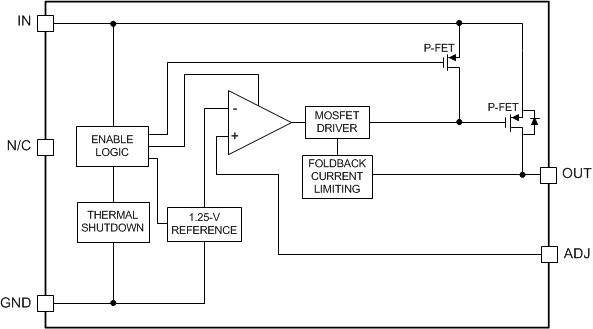

The LP3869x-ADJ low-dropout CMOS linear regulators provide 2% precision reference voltage, extremely low dropout voltage (250 mV at 500-mA load current, VOUT = 5 V), and excellent AC performance using ultra-low equivalent series resistance (ESR) ceramic output capacitors.
The low thermal resistance of the WSON and SOT-223 packages allow use of the full operating current even in high ambient temperature environments.
The use of a PMOS power transistor means that no DC base drive current is required to bias it, thus allowing the GND-pin current to remain below 100 µA regardless of load current, input voltage, or operating temperature.
