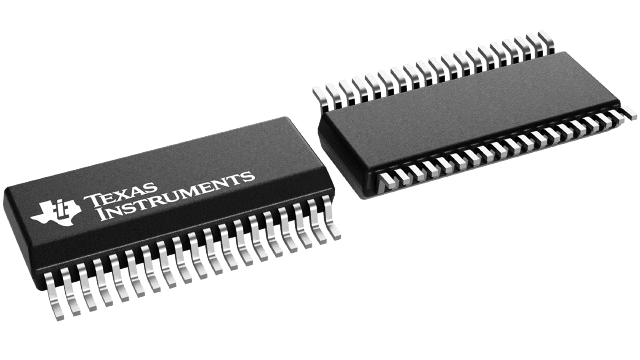

ISO1228
  • ISO1228
  • ISO1228
  • ISO1228
  • ISO1228
  • ISO1228

ISO1228

ACTIVE

Eight-channel isolated 24-V to 36-V digital input receiver with current limiting and LED indication

Texas Instruments ISO1228 Product Info

1 April 2026 0

Parameters

Rating

Catalog

Isolation rating

Basic

Number of channels

8

Forward/reverse channels

8/0

Data rate (max) (Mbps)

1.5

Working isolation voltage (VIOWM) (Vrms)

450

Surge isolation voltage (VIOSM) (VPK)

5000

Transient isolation voltage (VIOTM) (VPK)

4242

Withstand isolation voltage (VISO) (Vrms)

3000

CMTI (min) (kV/µs)

50

Operating temperature range (°C)

-40 to 125

Supply voltage (max) (V)

36

Supply voltage (min) (V)

1.71

Propagation delay time (typ) (µs)

0.78

Package

SSOP (DFB)-38-59.4 mm² 9.9 x 6

Features

  • Configurable IEC 61131-2 eight Type 1/3 or four Type 2 Isolated Digital Inputs
  • Low Power and Heat Dissipation
    • Selectable input current limit
    • Fieldside LED drivers using input current
  • Configurable sinking or sourcing type inputs
  • Wire-break detection in sink mode
  • Integrated field-side power loss detection
  • Programmable Glitch Filters
  • Built in CRC check across barrier
  • Serial SPI and Parallel output options
    • Supports SPI daisy chaining
    • Supports SPI burst mode
  • Integrated IEC ESD and Surge Protection
  • High CMTI(Typ): 75kV/µs
  • VCC1 Logic supply voltage range: 1.71V to 5.5V
  • AVCC field supply voltage range (sink mode): 8.5V to 36V
  • AVCC field supply voltage range (source mode): 13V to 36V
  • Ambient temperature range: –40°C to 125°C
  • Small Footprint 38-SSOP Package
  • Safety-related certifications:
    • 4242VPK VIOTM and 637VPK VIORM per DIN EN IEC 60747-17 (VDE 0884-17)
    • 3000-VRMS Isolation for 1 Minute per UL 1577
    • IEC 62368-1, IEC 61010-1 Certifications
    • All Certifications Planned
  • Configurable IEC 61131-2 eight Type 1/3 or four Type 2 Isolated Digital Inputs
  • Low Power and Heat Dissipation
    • Selectable input current limit
    • Fieldside LED drivers using input current
  • Configurable sinking or sourcing type inputs
  • Wire-break detection in sink mode
  • Integrated field-side power loss detection
  • Programmable Glitch Filters
  • Built in CRC check across barrier
  • Serial SPI and Parallel output options
    • Supports SPI daisy chaining
    • Supports SPI burst mode
  • Integrated IEC ESD and Surge Protection
  • High CMTI(Typ): 75kV/µs
  • VCC1 Logic supply voltage range: 1.71V to 5.5V
  • AVCC field supply voltage range (sink mode): 8.5V to 36V
  • AVCC field supply voltage range (source mode): 13V to 36V
  • Ambient temperature range: –40°C to 125°C
  • Small Footprint 38-SSOP Package
  • Safety-related certifications:
    • 4242VPK VIOTM and 637VPK VIORM per DIN EN IEC 60747-17 (VDE 0884-17)
    • 3000-VRMS Isolation for 1 Minute per UL 1577
    • IEC 62368-1, IEC 61010-1 Certifications
    • All Certifications Planned

Description

The ISO1228 is an eight-channel isolated 24V digital input receiver, configurable to IEC 61131-2 Type 1, and 3 characteristics or four-channel Type 2 characteristics. The ISO1228 includes resistor-programmable accurate current limit and field side input-current-powered LED indication to reduce system power dissipation and reduce board temperatures. ISO1228 can be configured for either sourcing or sinking type digital inputs with minimal hardware change. Both serial SPI and parallel output modes are available. Wire-break detection, fieldside supply monitoring and built-in CRC across barriers help improve system reliability. In-built glitch filters and integrated IEC-ESD and surge protection help to achieve a robust design.

The ISO1228 operates over the logic supply range of 1.71V to 5.5V, supporting 1.8V, 2.5V, 3.3V, and 5V controllers. Field side output voltage range supported is 8.5V to 36V in sink mode and 13V to 36V in source mode.ISO1228 supports up to 1.5Mbps data rates passing a minimum pulse width of 667ns for high-speed operation.

The ISO1228 is an eight-channel isolated 24V digital input receiver, configurable to IEC 61131-2 Type 1, and 3 characteristics or four-channel Type 2 characteristics. The ISO1228 includes resistor-programmable accurate current limit and field side input-current-powered LED indication to reduce system power dissipation and reduce board temperatures. ISO1228 can be configured for either sourcing or sinking type digital inputs with minimal hardware change. Both serial SPI and parallel output modes are available. Wire-break detection, fieldside supply monitoring and built-in CRC across barriers help improve system reliability. In-built glitch filters and integrated IEC-ESD and surge protection help to achieve a robust design.

The ISO1228 operates over the logic supply range of 1.71V to 5.5V, supporting 1.8V, 2.5V, 3.3V, and 5V controllers. Field side output voltage range supported is 8.5V to 36V in sink mode and 13V to 36V in source mode.ISO1228 supports up to 1.5Mbps data rates passing a minimum pulse width of 667ns for high-speed operation.
